OLED text and graphic display, viewing angle >170°, SPI, I²C

Contrast 1:2000

Deep black background.

Viewing angle >170°.

-40 to +80°C (-40 to +176°F).

OLED.

SPI. I²C. USB. RS232.

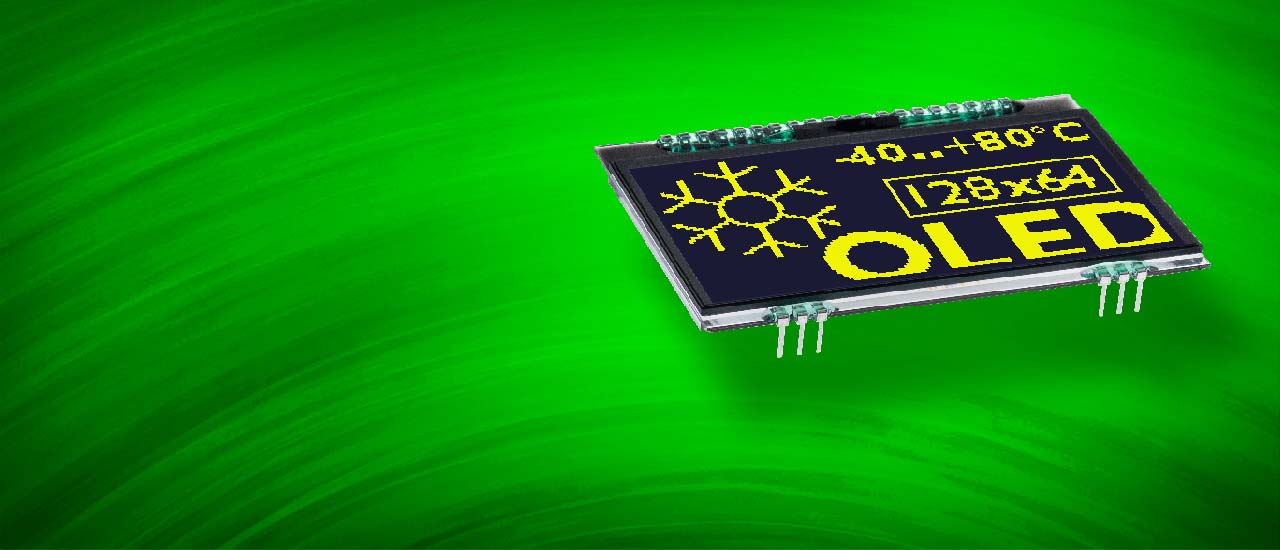

Industrial OLED Display, bright and durable: 3.3V and SPI

OLED: Displays of the Superlative

Displays of the Superlative

Now the worldwide first OLED display family with pins is available! Pins with pitch 2.54mm provide a much faster and easier design; just put the display directly on a breadboard and application.
More than this: even in mass production the pins facilitate all mounting needs automatically. There's no need for any mechanical construction: simply solder the display into a pcb or plug with sockets.

But there are more details that convince:

  • Top. -40..+80°C (-40..+176°F)
  • from ice cold to brooding heat
  • extreme wide viewing angle of more than 170°
  • contrast > 1:1000
  • display response time typ. 10µs (even at -40°C)

These displays come with an integrated controller and support SPI and I²C bus directly. Power supply is 3.3V (some as singe-supply).

All versions do provide SPI and I²C bus interface

OLED displays
with pins
Ordering code Diagonale

Resolution

Dimensions
in mm

  Color Data Sheet Shop
EA OLEDS102-6GGA

1.7"

102x64

39x38x3.3 with cover glass yellow pdf EA Shop
EA OLEDS102-6LGA 39x38x2.1 w./o. cover glass
EA OLEDS102-6LWA 39x38x2.1 white w./o. cover glass white
EA OLEDM128-6GGA

2.3"

128x64

55x43x3.3 with cover glass yellow pdf EA Shop
EA OLEDM128-6LGA 55x43x2.1 w./o. cover glass
EA OLEDM128-6LWA 55x43x2.1 white w./o. cover glass white
EA OLEDL128-6GGA

2.9"

128x64

68x51x3.3 with cover glass yellow pdf EA Shop
EA OLEDL128-6LGA 68x51x2.1 w./o. cover glass
EA OLEDL128-6NGA 68x51x1.8 silver background
EA OLEDL128-6LWA 68x51x2.1 white w./o. cover glass white
EA OLEDM204-GGA

2.0"

4x20 / 2x20

61x26x3.3 with cover glasss yellow pdf EA Shop
EA OLEDM204-LGA 61x26x2.1 w./o. cover glass
EA OLEDM204-LWA 61x26x2.1 white w./o. cover glass white





OLED: Character display

Character display 2x8..4x20

With it's well-known 4 bit and 8 bit parallel interface, the new OLED displays are similar to the HD44780 standard.

USB testboard for OLED and simulator for Windows

OLED Quick test via USB

This is how fast you have never set up a display!

With the test board EA 9781-2USB.

Connect the test board to the PC, install the USB driver and plug in the display. Immediately you will see some demo pictures on your OLED display.

Individual pictures (monochrome) can be displayed by Drag&Drop operation easyly.

The display's SPI interface is connected to some eyelets and can be used at any time with your own µC system.

Download OLED-Simulator

Data sheet for EA 9781-2USB and Simulator

EA Shop​​​​​​​

more
EA OLED: Continous operation without problems

Continous operation without problems

Finally, the new OLED displays from the company DISPLAY VISIONS can also be installed in industrial applications. Thanks to the new, patented OLED technology, the displays achieve a lifetime of 30,000 to 100,000 hours, depending on the color and ambient temperature.

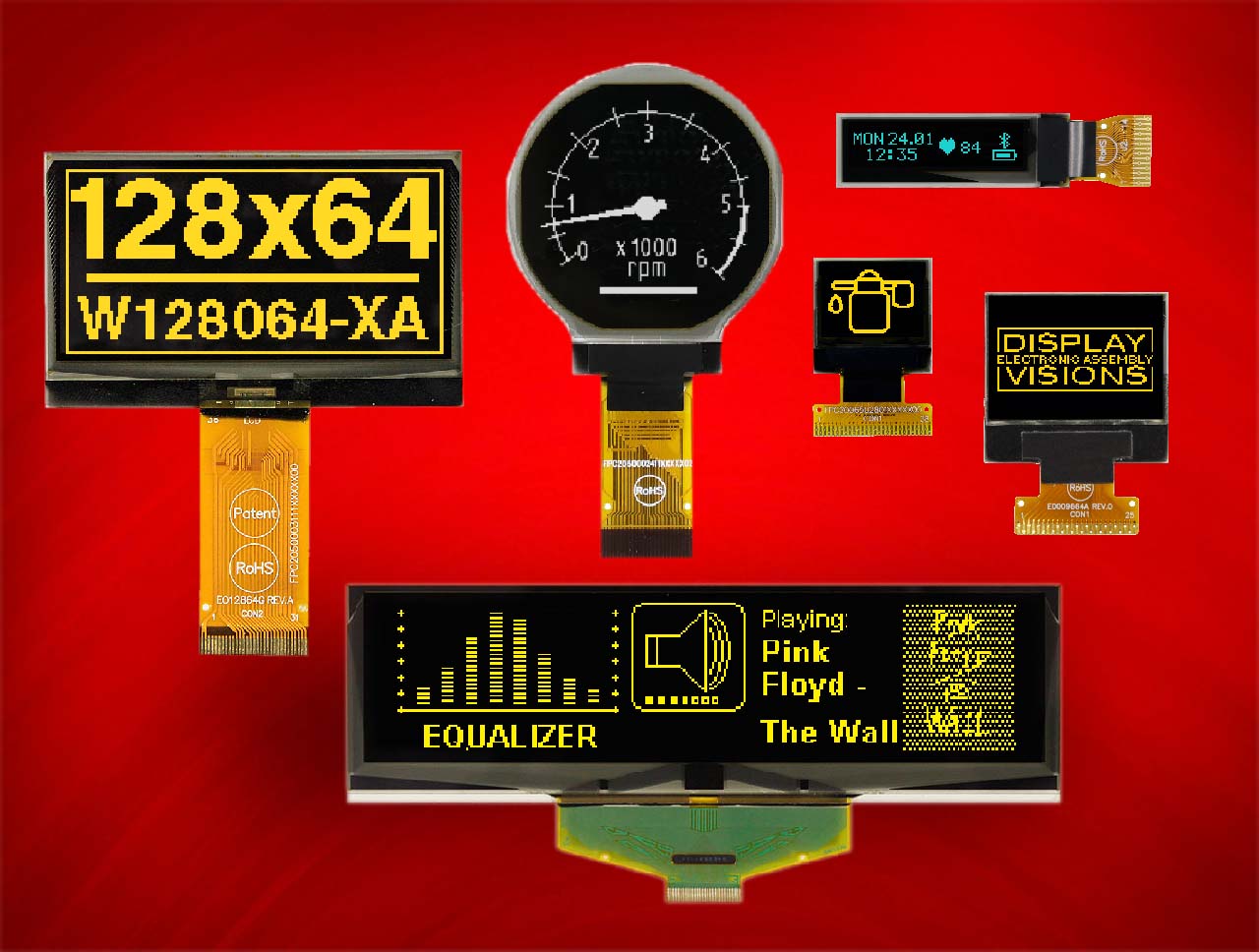

Small OLED graphic displays with FPC flex cable

Small graphic displays with flex cable

Whether round, whether square or extreme small with 29x9mm only, the new OLED displays from DISPLAY VISIONS play their advantage for compact handheld applications: power saving, compact and with an extreme wide operating temperature of -40..+80°C range.

Interface is serial for every 3.3V system. Thanks to the integrated controller and a lot initialization examples it is easy to display measurement, graphics and icons quick and contrasty.


OLED Graphic displays

Ordering code Diagonale Resolution Dimensions
in mm
Color Data Sheet Shop
EA W064048-XALG 0.66" 64x48 18,46x18,1 yellow pdf EA Shop
EA W096016-XALW 0.84" 96x16 29,1x9,2 white pdf EA Shop
EA W096016-XBLW EA Shop
EA W128128-XRLB 1.18" round 128x128 36,98x41,23 blue pdf EA Shop
EA W128128-XRLG 1.18" round 128x128 36,98x41,23 yellow pdf EA Shop
EA W128128-XRLW 1.18" round 128x128 36,98x41,23 white pdf EA Shop
EA W128128-XALG 1.5" 128x128 33,8x36,5 yellow pdf EA Shop
EA W128032-XALG

2.2"

128x32 62x24 yellow pdf EA Shop
EA W128064-XALG 2.42" 128x64 60,5x37 yellow pdf EA Shop
EA W256064-XALG 3.12" 256x64 88x27,8 yellow pdf EA Shop
EA W256064-XGLG 5.5" 256x64 146x45 yellow pdf EA Shop

OLED-Displays - Text

Bestellbezeichnung

Zeilen x
Zeichen

Zeichenhöhe
in mm

Abmessungen
in mm

Farbe

Shop
EA W082-XLG

2x8

5,5

58x32

Gelb

Buy 2x8 character OLED display online
EA W162-X3LG

2x16

5,5

80x36

Gelb

Buy 2x16 character OLED display online
EA W162-X3LW

Weiss

Buy 2x16 character OLED display online
EA W162-X9LG

2x16

5,5

85x36

Gelb

Buy 2x16 character OLED display online
EA W162-XLG

2x16

5,5

84x44

Gelb

Buy 2x16 character OLED display online
EA W162-XBLG

2x16

8,9

122x44

Gelb Buy 2x16 character OLED display online
EA W162-XBLW

Weiss

Buy 2x16 character OLED display online
EA W202-XLG 2x20

5,5

116x37 Gelb Buy 2x20 character OLED display online
EA W204-XLG

4x20

4,75

98x60

Gelb

Buy 4x20 character OLED display online

Datenblatt oled.pdf

Englisch, Japanse European, Cyrillic

The new OLED displays do provide all important character sets as a standard already: English, Japanese, European and Cyrillic. Especially for the cold northern countries in Europe the new OLED displays are a perfect solution: full functionality in combination with cyrillic characters.
They also do provide a very fast display response time even at icy temperatures of -40°C. And the life time with such temperatures is no more a problem.

Graphics capability control unit with USB

OLED with USB, RS-232 and PCAP

Brand new are our graphic capability OLED displays with USB connection and integrated touchpanel. They are good for wholesome control unit or as a display only.

In addition to some serial interfaces like RS-232, SPI and I²C there are some digital and analoge in- and outputs also. With the use of those some simple control actions with fixed display content can be realized. Currently there are 2 sizes available with 2.9" and 82x67x21mm same as 1.7" with 55x54x21mm.

EA PLUGL128-6GTC OLED with Touch, ZIFF connector for FPC
EA PLUGL128-6GTCZ OLED with Touch, ZIFF incl. screw terminals and 26-pin IDC connector for I/O's

EA PLUGS102-6GTC OLED with Touch, ZIFF connector for FPC
EA PLUGS102-6GTCZ OLED with Touch, ZIFF incl. screw terminals and 26-pin IDC connector for I/O's

Assembly is very easy with a simple put-into frontal plate and mount via self-adhesive stripes - portrait mode and landscape. Datasheet.
