This displays are simply inserted in the PCB and soldered in place. There are no screws, distance sleeves or cables required. This saves material and simplifies immediately the construction. There's a saving for every single display module during assembly. Alternatively diplays can be used with sockets.
Brochure in pdf format.
All displays are shipped with market-standard controllers. This means that the existing hardware and software can continue to be used unchanged.
Only top-quality materials are used. As a result, these displays are very easy to read and offer a high level of contrast. The design and manufacture of this display series guarantees minimum downtimes even under extreme conditions.
With a standard operating temperature of -20..+70 °C, rapid response times are guaranteed even at -20 °C. Automatic temperature compensation is usually also built-in. 5V single-supply operation is possible in all cases thanks to the built-in voltage doublers (exception: EA DIP122).
| Character | Character height | Dimensions | Ordering code | Color | Controller | Datatsheet |
|---|---|---|---|---|---|---|
| Graphic | 122x32 | 68x27mm | EA DIP122-5HNLED | yellow/green | AX6120 | DIP122-5 |
| 75x27mm | EA DIP122J-5NLA | amber | ||||
| EA DIP122B-5NLW | blue-white | |||||

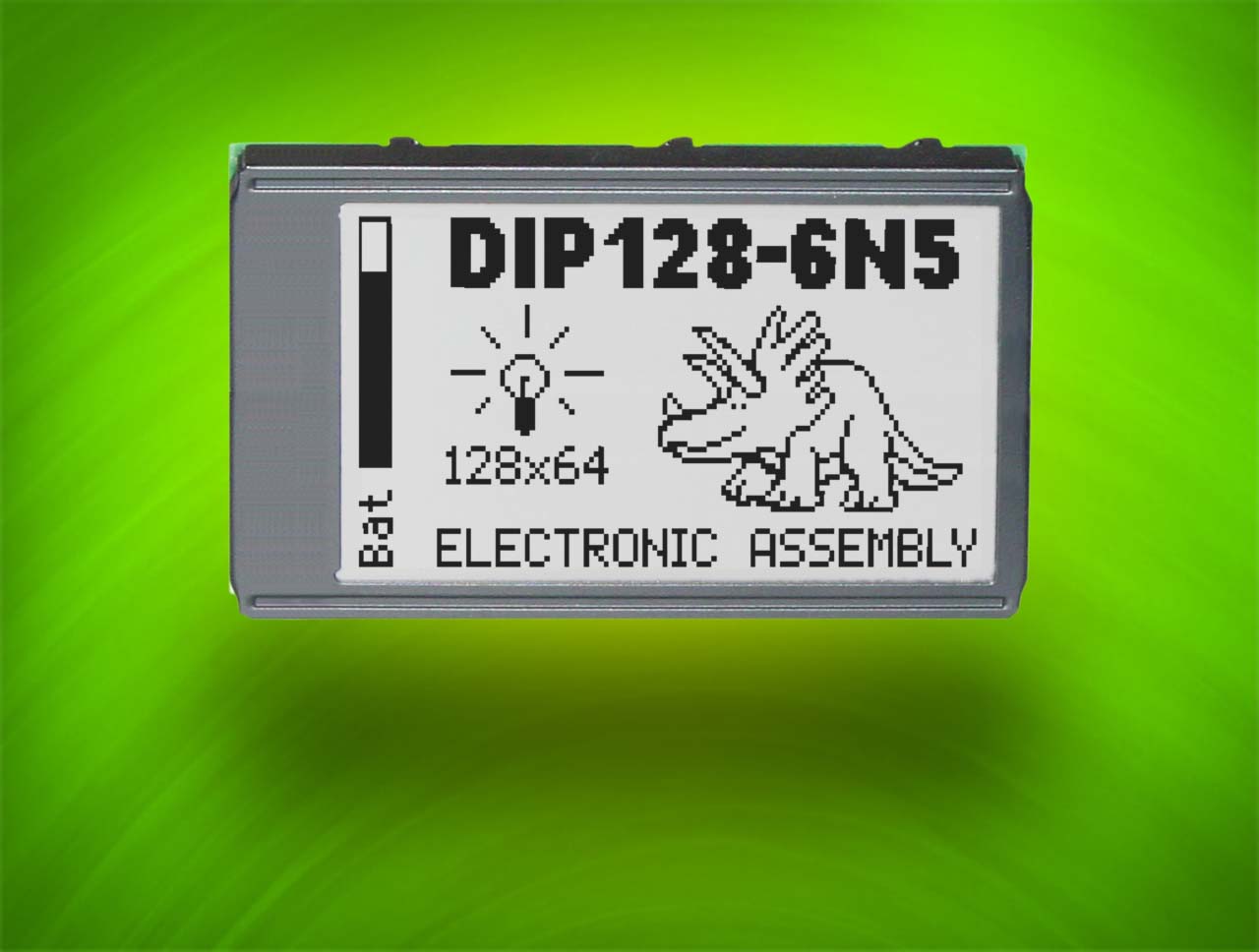

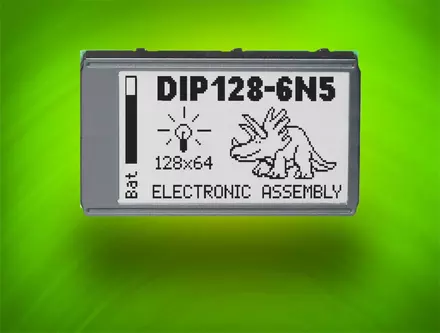

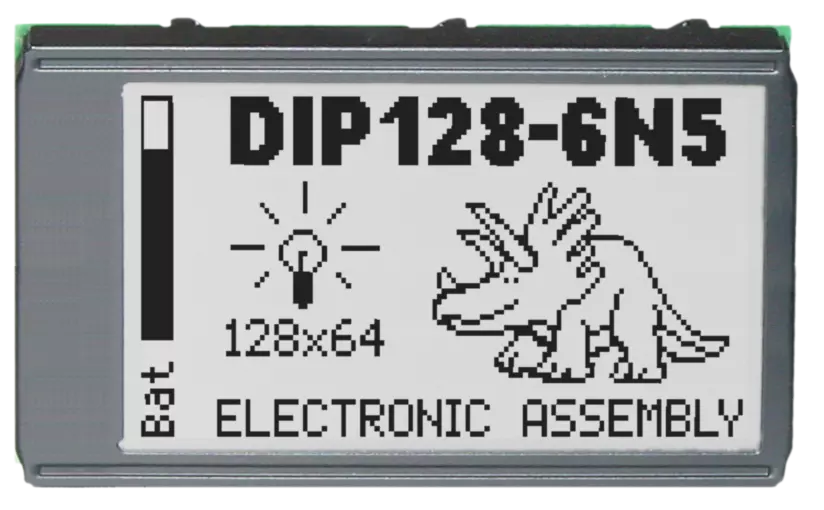

| 128x64 | 75x46mm | EA DIP128J-6N5LW | black&white | PT6608 | DIP128-6 | |
| EA DIP128J-6N5LA | amber | |||||
| EA DIP128-6N5LW | blue-white | |||||

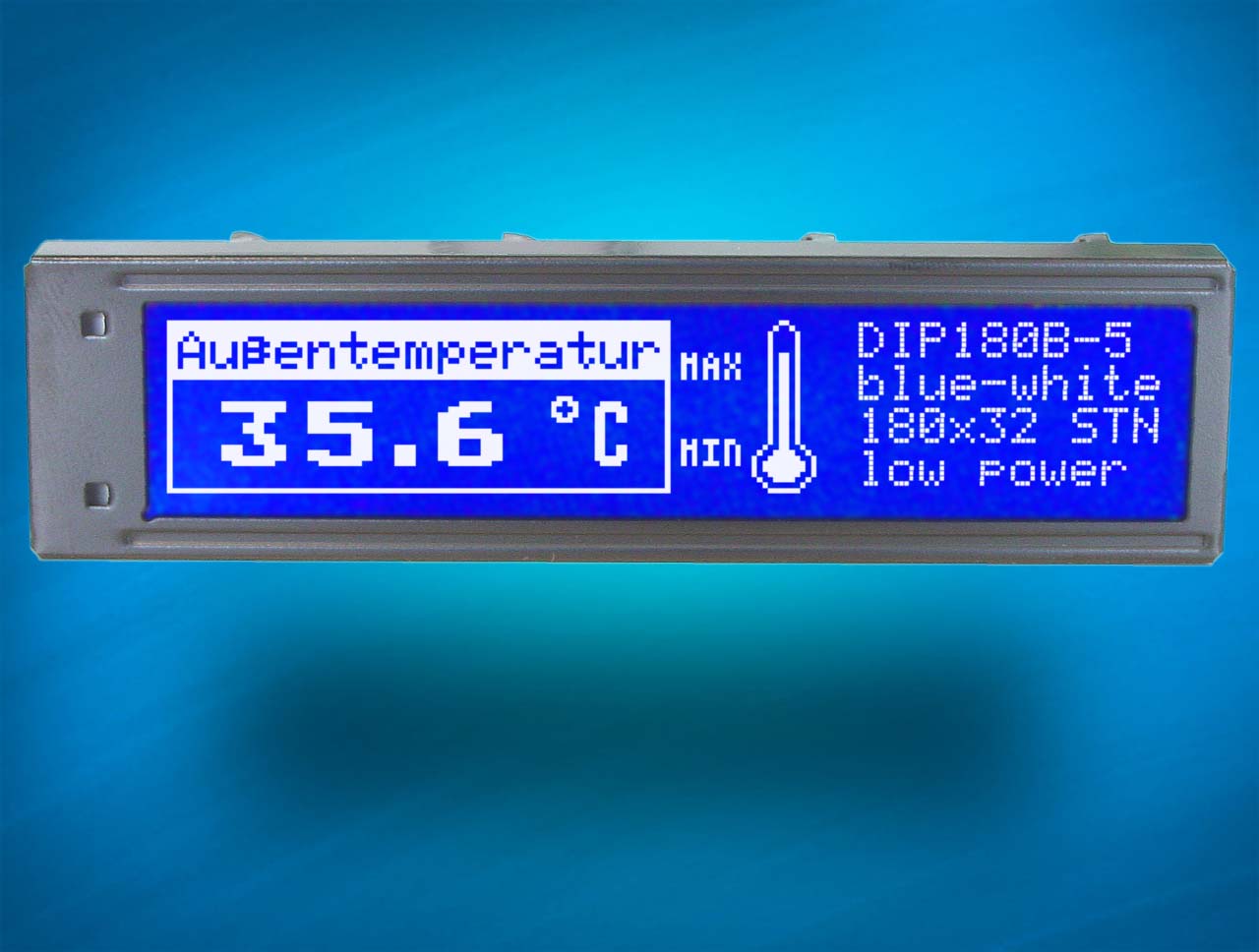

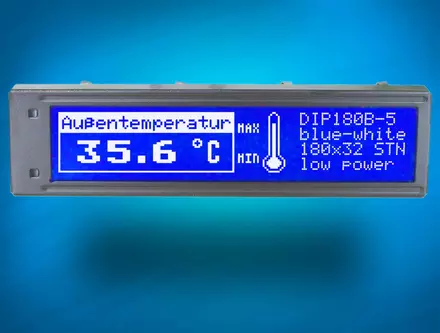

| 180x32 | 102x27mm | EA DIP180B-5NLW | blue-white | AX6120 | DIP180-5 | |

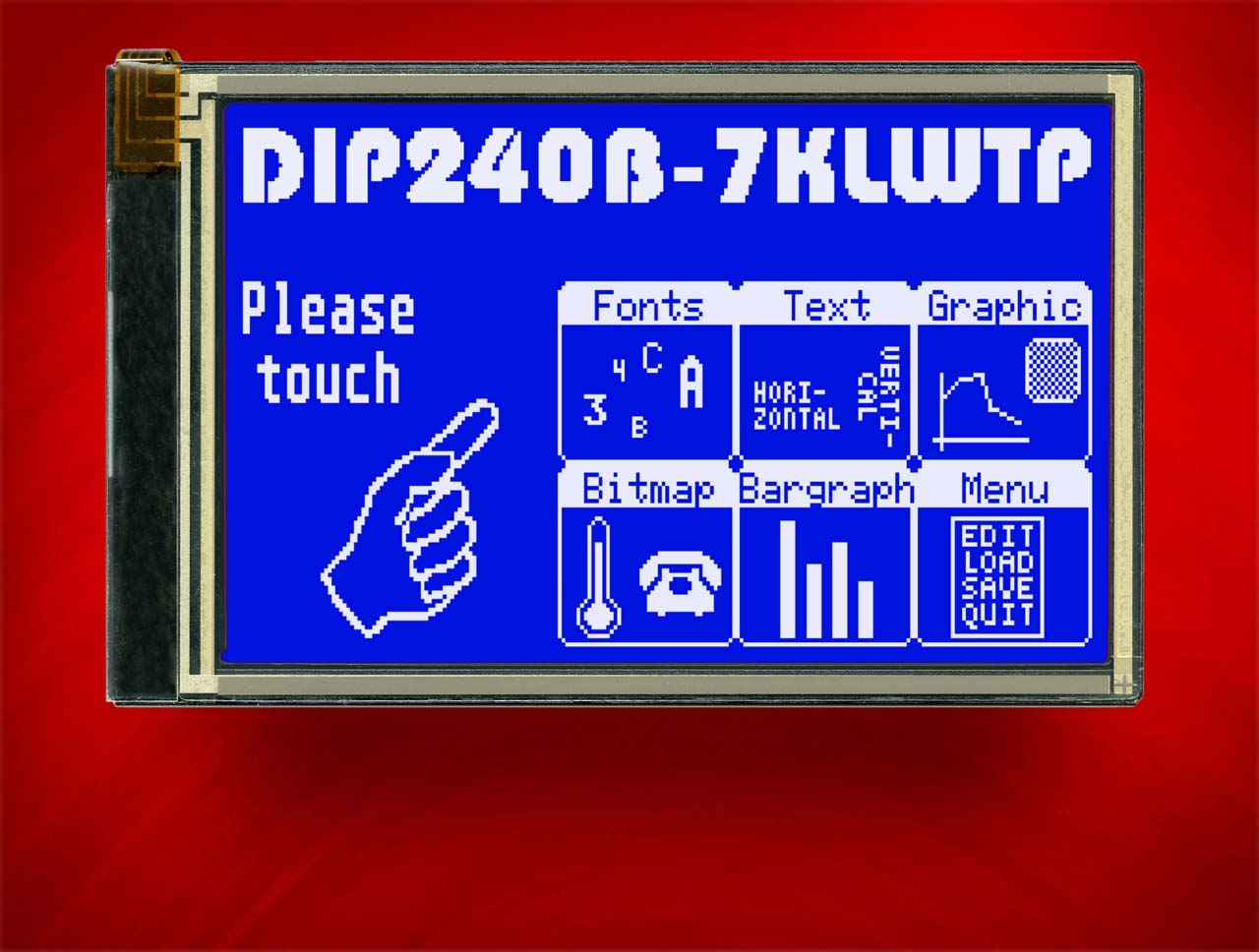

| 240x128 | 113x70mm | EA DIP240J-7KLW | black&white | T6963 | DIP240-7 | |
| EA DIP240B-7KLW | blue-white | |||||
| 1x8 | 7.15 mm | 40x20mm | EA 8081-A3N | gray | ST7066 | 8081-A3N |
| 11.48 mm | 68x27mm | EA DIP081-CHNLED | yellow/green | ST7066 | DIP081-C | |

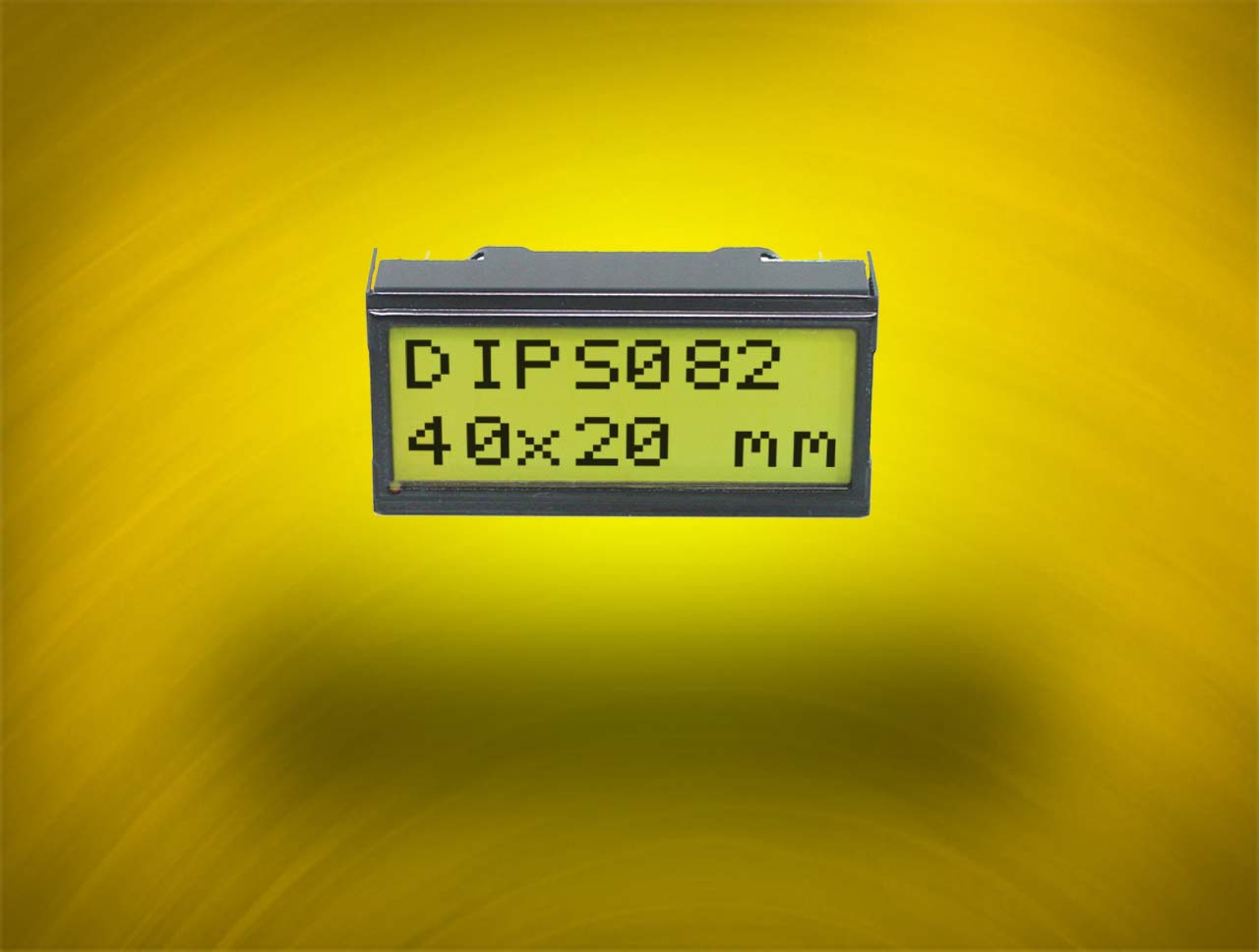

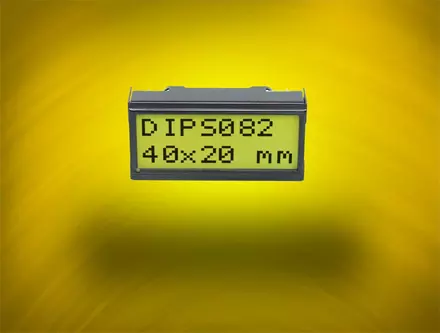

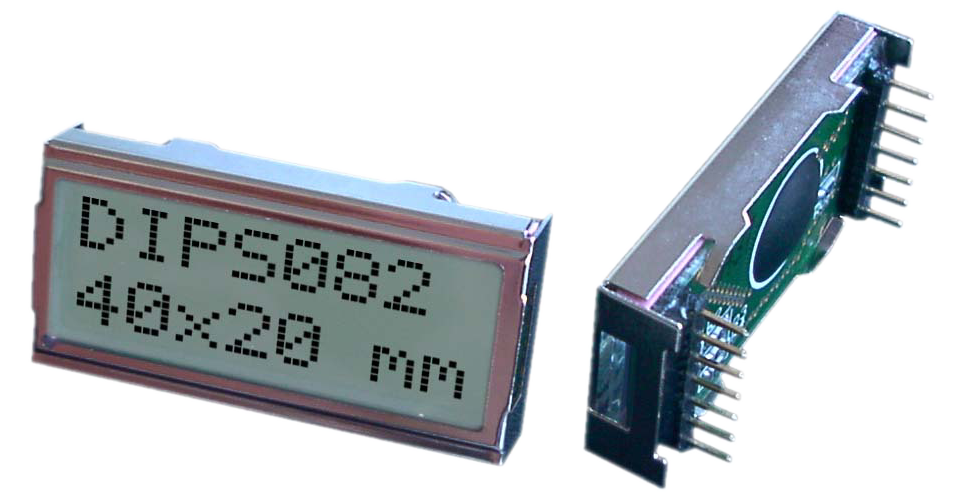

| 2x8 | 5.01 mm | 40x20mm | EA DIPS082-HN | yellow/green | ST7066 | DIPS082 |
| EA DIPS082-HNLED | yellow/green | |||||

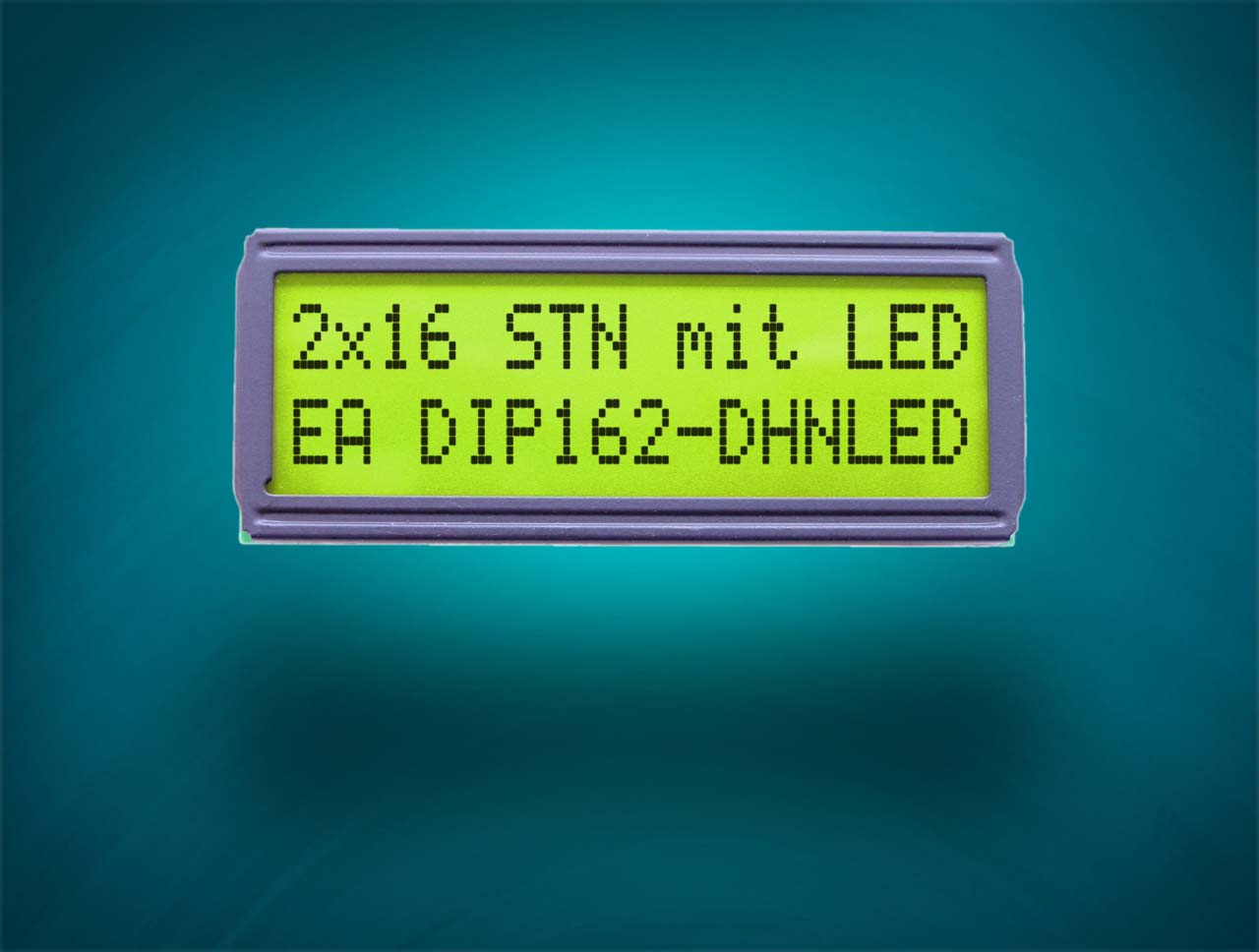

| 2x16 | 6.68 mm | 68x27mm | EA DIP162-DHNLED | yellow/green | ST7066 | DIP162 |
| 75x27mm | EA DIP162J-DN3LW | black&white | ||||
| EA DIP162-DN3LW | blue-white | |||||

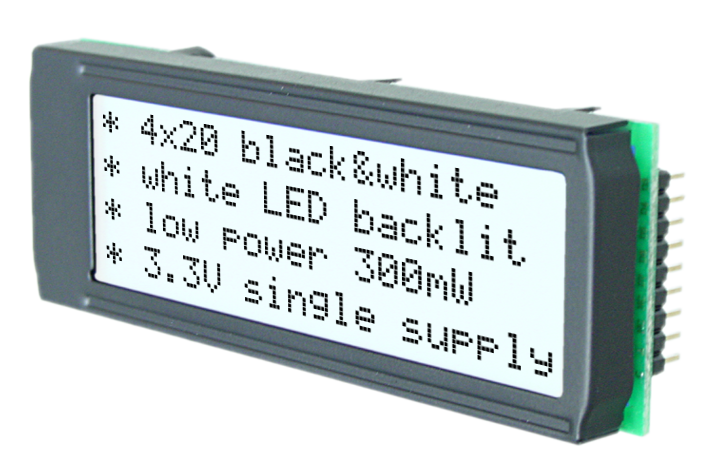

| 4x20 | 3.75 mm | 68x27mm | EA DIP205G-4NLED (EA DIP203G-4NLED obsolete) | yellow/green | ||
| 75x27mm | EA DIP205J-4NLW (EA DIP203J-4NLW obsolete) | black&white | ||||
| EA DIP205B-4NLW (EA DIP203B-4NLW obsolete) | blue-white | |||||
| 6.45 mm | 75x46mm | EA DIP205J-6NLW (EA DIP203J-6NLW obsolete) | black&white | |||
| EA DIP205B-6NLW (EA DIP203B-6NLW obsolete) | blue-white |
DIP displays can also be assembled via socket. Suitable types are mentioned in relating data sheet.

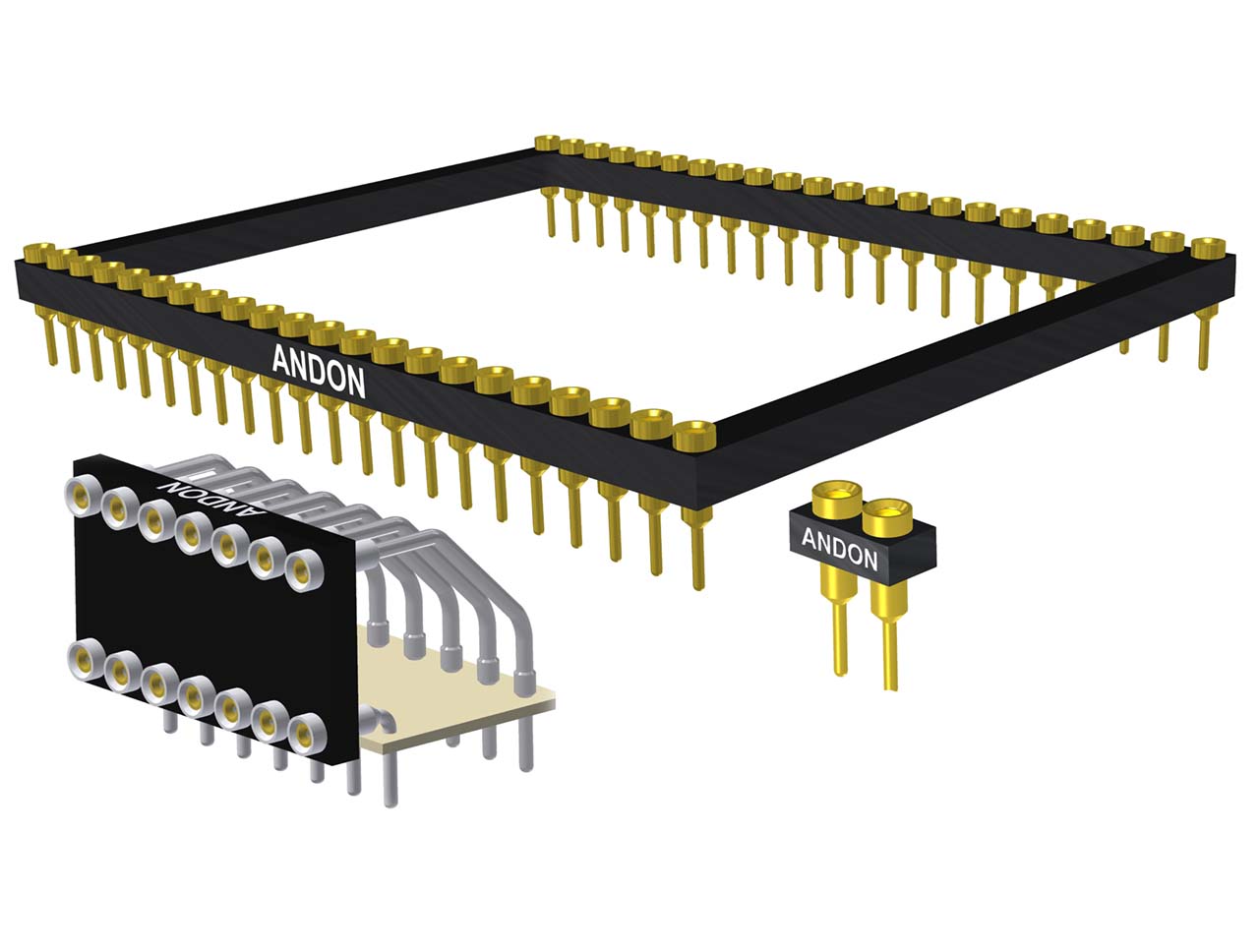

Alternatively Andon Electronics (USA) provides self developed sockets. Click here for a list.
