Software adaption, Macro programming for HMI uniTFT and eDIP

Software Service

EA uniTFT(s) and EA eDIP

From the idea to the product:

Software customization and

Macro programming

Software programming service for your HMI solution

The advantages are obviously

Efficient programming already for the first sample application. We create a small test application for you free of charge and you can fully concentrate on your core competence in the meantime. As soon as you have a specification, we will gladly prepare an offer for the implementation. In mass production, we also deliver our displays pre-installed with your individual software "onboard" ex works on request. The smaller the quantities of your products, the greater the advantage. Learn more about our comprehensive service here:

Software Service for HMI unit, TFT, IPS and touchpanel

Project support and macro programming for HMI displays uniTFT and eDIP

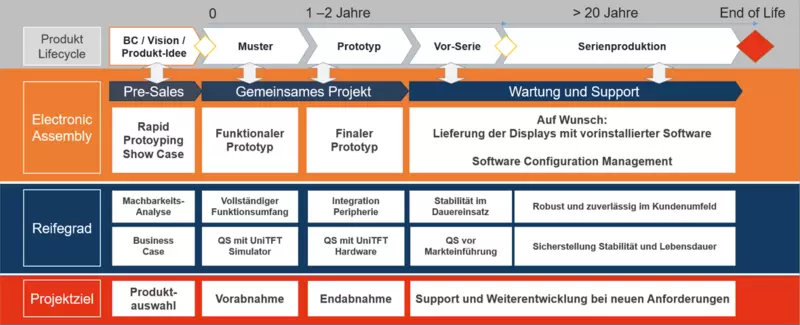

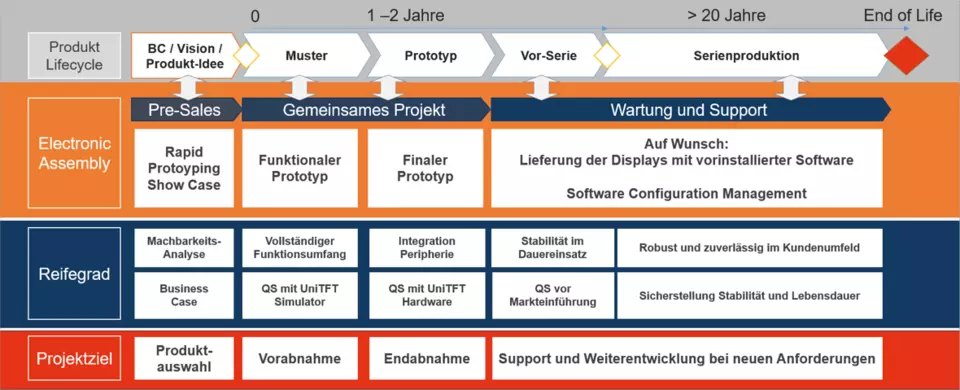

Our service along the product lifecycle

We offer the right service for every stage, from feasibility analysis to simulations and support for further developments.

SUCCESS STORIES

Selected customer projects in the field of software.

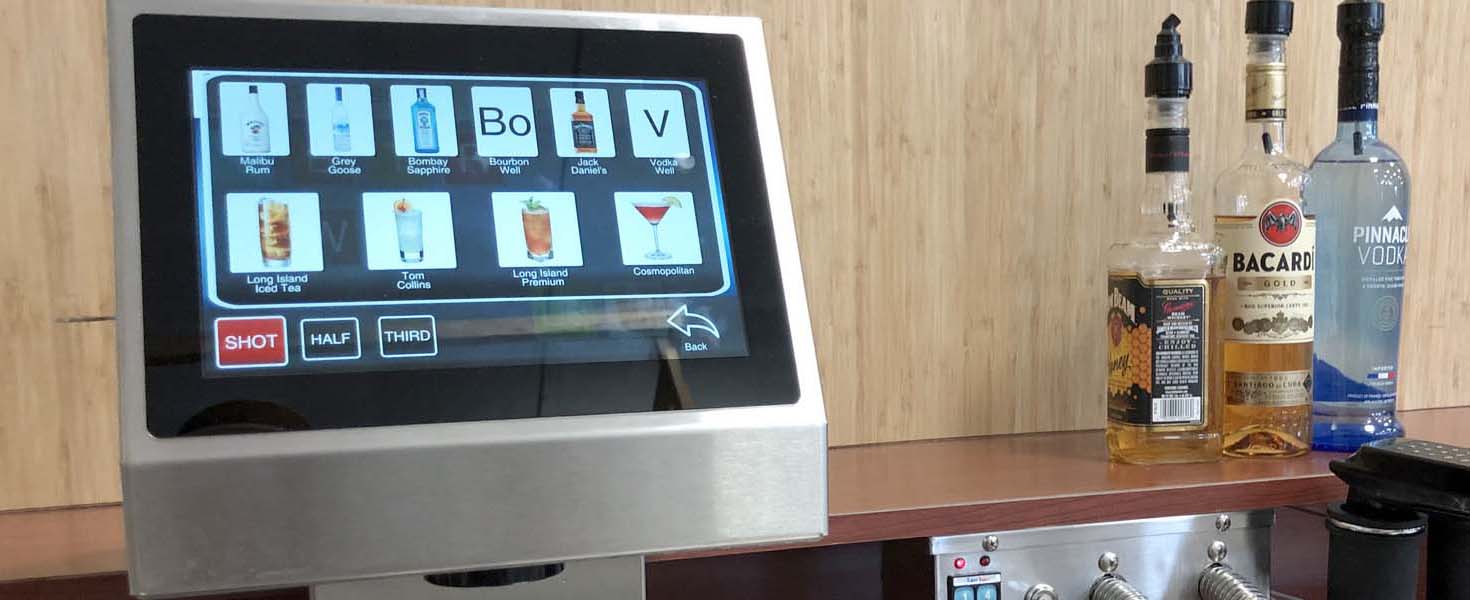

EA uniTFT a HMI unit in coctail dispensing for bar and event.

Automated coctail dispensing equipment EA uniTFT101

What sounds trivial at first glance turns out to be a sophisticated software solution upon closer inspection - perfect for our high-end operating unit EA uniTFT101.

Customer quote: "This display fit seamlessly into our overall concept and design and created a flawless interaction with servers in a real world environment."

We helped EasyBar optimize program runtimes and provide easy, flexible adaptation for future needs.

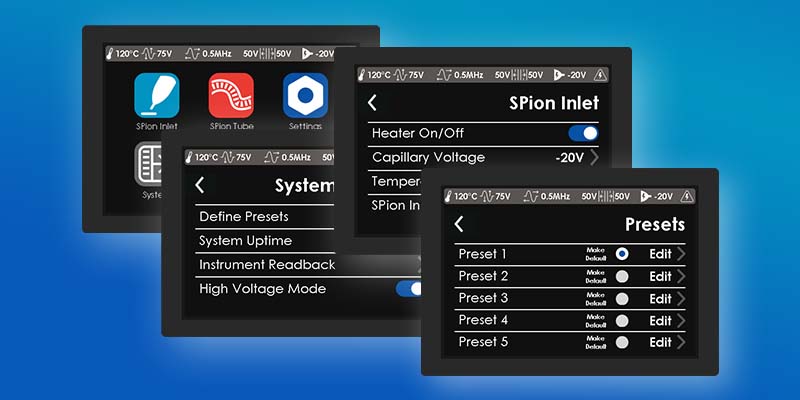

Mass spectrometer with small TFT HMI display

Control of a mass spec analysis

The best inventions are of no use if they are not translated into devices that can be used in research and production without expert knowledge.

In a control unit we were allowed to help TRACE MATTERS, to build a customers defined menu for the EA uniTFTs035.

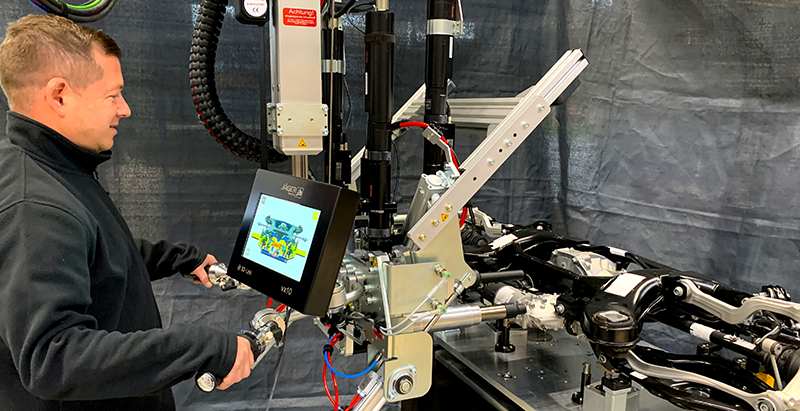

[Translate to Englisch:] Jäger Handling visu-box

High quality screwing

In wheel assembly, a handling system assists in grabing the wheel and simultaneously bolts all the bolts at once. The torque and the angle of rotation are monitored during the screwing process. Thus, faulty screws and screw results are detected during the screwing-in process. JÄGER Handling asked us to support them in the area of visualisation. Displays from 4.3" to 10.1" are in use.

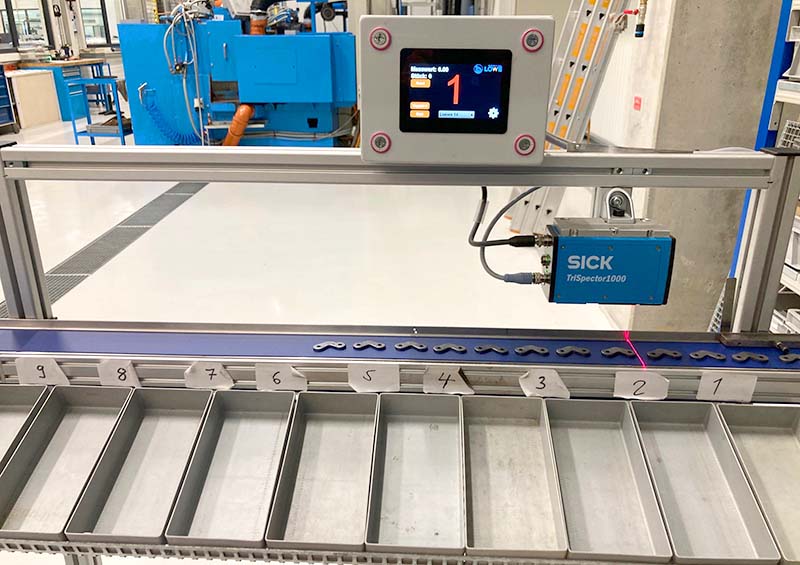

Sorting and monitoring

Quality control is at the end of the production process. This is also the case at the scissors specialist Randolph Schröder GmbH with its brand Löwe. The parts arriving from assembly line are checked by laser, measured and divided into 10 different groups. The EA uniTFTs043 display shows the inspection result and sorts into the respective group.

We supported Randolph Schröder with the interface and visualisation of the sensor unit. The system ensures the high quality standard in multi-shift operation.
