Displays with USB interface, LCD OLED RS-232 RS-422

Graphics capability control unit with USB

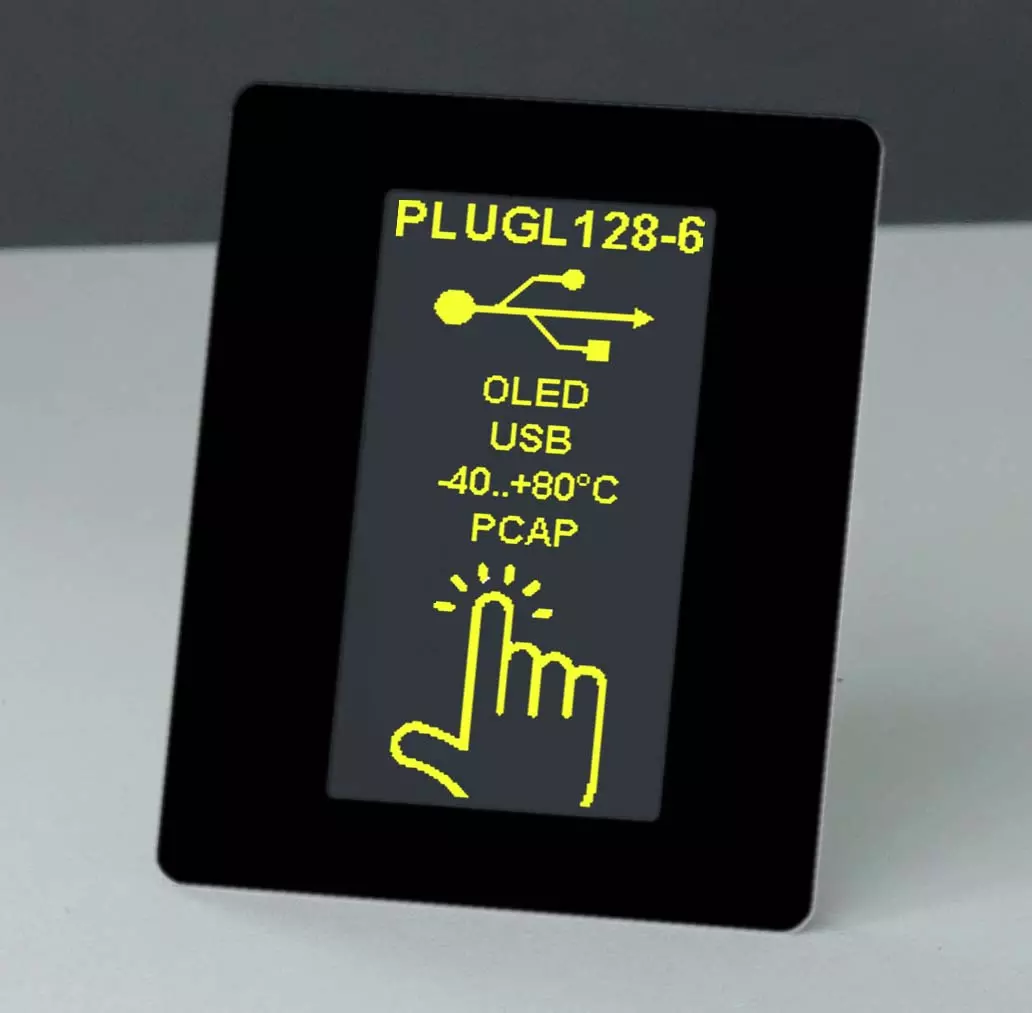

Graphics HMI with USB and OLED Display

Brand new are our graphic capability OLED displays with USB connection and integrated touchpanel. They are good for wholesome control unit or as a display only.

In addition to some serial interfaces like RS-232, SPI and I²C there are some digital and analoge in- and outputs also. With the use of those some simple control actions with fixed display content can be realized. Currently there are 2 sizes available with 2.9" and 82x67x21mm same as 1.7" with 55x54x21mm.

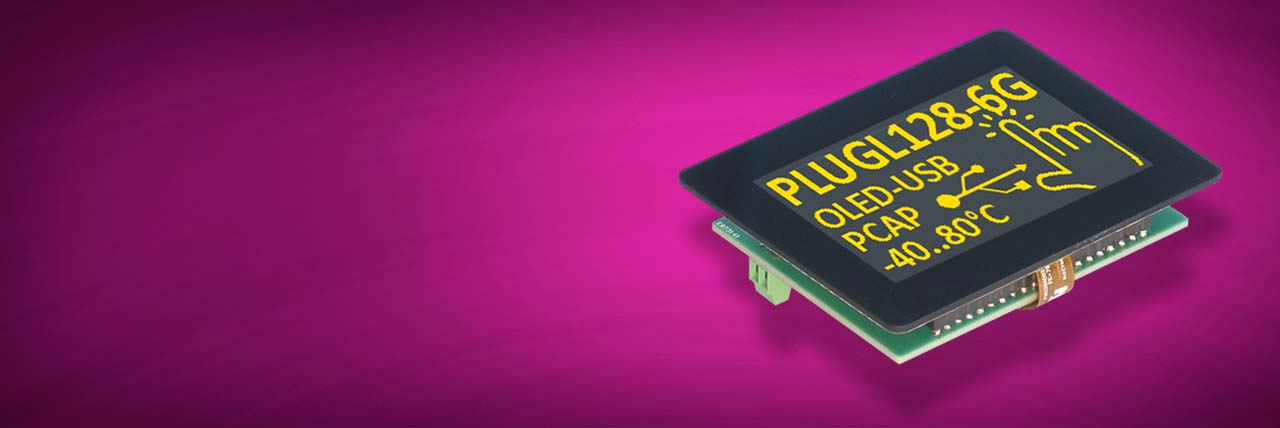

EA PLUGL128-6GTC OLED with USB and ZIFF connector for FPC
EA PLUGL128-6GTCZ OLED with USB and ZIFF incl. screw terminals and 26-pin IDC connector for I/O's

EA PLUGS102-6GTC OLED with USB and ZIFF connector for FPC
EA PLUGS102-6GTCZ OLED with USB and ZIFF incl. screw terminals and 26-pin IDC connector for I/O's

Assembly is very easy with a simple put-into frontal plate and mount via self-adhesive stripes - portrait mode and landscape. Datasheet.

Serial devices with RS-232/RS-422

Our serial devices are a dot-matrix LCD series of products that are ready for operation with a driver and a bezel or a snap-in housing. They are connected to a standard RS-232C interface (or, optionally, an RS-422). The data transmission rate can be set to 300, 1,200, 2,400 or 9,600 bps. All cursor control (line feed etc.) is automatic. The displays are equipped with LED lighting that can be switched off by software means.
All displays except for 8- and 16-line displays are available for a 5V or 9-35V supply.
Addressing: Thanks to selectable addresses, up to 64 displays can be addressed separately at a serial interface (EA OPT-DIP6).

Prices as of 25 items begin at 78.22 euros*). Smaller quantities can also be delivered at short notice. You will find more information in our flyer and the data sheet.

*) Prices quoted are inclusive of 19% sales tax.

Seriel Displays - Table

Serial displays with RS-232C/RS-422 and LED lighting
Product	Lines x characters	Character height	Module size WxHxD	Viewing area WxH	Including bezel	Power (typically)
1-line displays

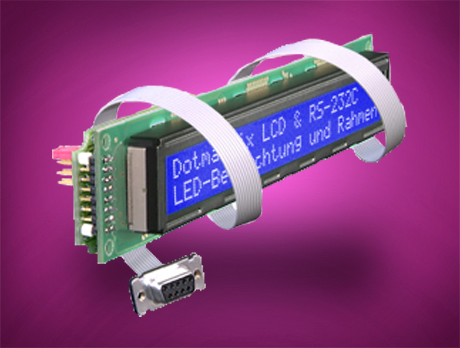

EA SER081-92NLED	1 x 8	11.48 mm	77x54x26	56.5x22	Snap-in housing	120 mA
EA SER081-CNLED	1 x 8	10.8 mm	84x44x26	61x15.8	017-2UKE	30 mA
EA SER161-DNLED	1 x 16	6.56 mm	80x36x27	64.5x13.8	017-1UKE	100 mA
EA SER161-ENLED	1 x 16	9.66 mm	122x33x27	99x13	017-6UKE	170 mA
2-line displays
EA SER082-CNLED	2 x 8	11.44 mm	84x44x27.5	63x25	017-8UKE	90 mA
EA SER162-N3LW blue	2 x 16	5.55 mm	80x36x27	61x15.8	017-2UKE	40 mA
EA SER162-CNLED	2 x 16	4.35 mm	80x36x27	64.5x13.8	017-1UKE	90 mA
EA SER162-NLED	2 x 16	5.55 mm	84x44x27	61x15.8	017-2UKE	120 mA
EA SER162-NLW blue	2 x 16	5.55 mm	84x44x27	64.5x16	017-2UKE	40 mA
EA SER162-92NLED	2 x 16	6.68 mm	77x54x26	56.5x22	Snap-in housing	120 mA
EA SER162-BNLED	2 x 16	9.66 mm	122x44x29	99x24	017-12UKE	360 mA
EA SER162-BNLW blue	2 x 16	9.66 mm	122x44x29	99x24	017-12UKE	65 mA
EA SER202-NLED	2 x 20	5.55 mm	116.5x39x29	85x18.6	017-7UKE	210 mA
EA SER202-NLW blue	2 x 20	5.55 mm	116.5x39x26	85x18.6	017-7UKE	40 mA
EA SER202-BHNLED	2 x 20	9.20 mm	146x43x27	123x23	---	270 mA
EA SER242-NLED	2 x 24	5.55 mm	118x36x27	93.5x15.8	017-14UKE	150 mA
EA SER242-BNLED	2 x 24	9.66 mm	208x40x29	178x23	---	190 mA
EA SER402-NLED	2 x 40	5.55 mm	182x33.5x29	154.1x15.3	017-4UKE	150 mA
EA SER402-NLW blue	2 x 40	5.55 mm	182x33.5x27	154.1x15.3	017-4UKE	40 mA
4-line displays
EA SER164-NLED	4 x 16	4.75 mm	87x60x27	61.8x25.4	017-8UKE	220 mA
EA SER204-92NLED	4 x 20	3.72 mm	77x54x26	56.5x22	Snap-in housing	120 mA
EA SER204-4NLED	4 x 20	4.03 mm	80.5x47x29	60x22	---	90 mA
EA SER204-NLED	4 x 20	4.75 mm	98x60x29	76x25.2	017-9UKE	260 mA
EA SER204-NLW blue	4 x 20	4.75 mm	98x60x29	76x25.2	017-9UKE	45 mA
EA SER204-BNLED	4 x 20	9.2 mm	146x62.5x27	123x42.5	017-25KE	810 mA
EA SER404-HNLED	4 x 40	4.89 mm	190x54x29	147x29.5	017-13UKE	440 mA
EA SER404-NLW blue	4 x 40	4.89 mm	190x54x29	147x29.5	017-13UKE	75 mA
8-line displays
EA SER408-NLED	8 x 40	4.2 mm	180x65x27	134x40	017-10UKE	300 mA
16-line displays
EA SER4016-NLED	16 x 40	3.6 mm	144x104x27	114x64	---	700 mA

Graphics units EA GE128-7KV24

LCD graphics units are intelligent graphics displays with a serial RS-232 interface. Two or three integrated character sets and a wide range of graphics functions permit the time- and cost-saving use of the latest LCD graphics displays. Apart from a supply voltage of +5V and RS-232 data, no further signals are required. No additional software or special drivers are required for their operation. All the graphics routines are integrated in the display's in-built high-level graphics controller. This permits the creation of a clear and attractive display using only a few commands. All functions are positioned with pixel accuracy by means of x/y coordinates (e.g. draw straight line: G x1 y1 x2 y2).
Prices for all graphics units if you order 25 are between 70.25 and 212.23 euros*). You will find more information in the relevant data sheets in PDF format.

*) Prices quoted are inclusive of 19% sales tax.

Grafic units - Tabelle

Product	Resolution	Dimensions	Fonts	Option	Notes	Data sheet	Photo

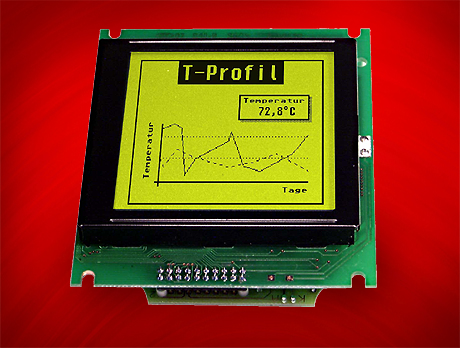

EA GE120-5NV24	120x32	68x39x13	2 + zoom		LED lighting	GE120
EA GE128-6N9V24	128x64	57x46x7.5(15)	5 + zoom		EL lighting	GE128-69
EA GE128-6N3V24	128x64	84x60x24	3 + zoom	DIP6	LED lighting	GE128-6
EA GE240-6KV24	240x64	180x65x28	3 + zoom	DIP6	LED lighting	GE6963
EA GE240-6KCV24	240x64	189x65x36	3 + zoom	DIP6	Negative FSTN blue, CFL lighting
EA GE240-7KV24	240x128	144x104x28	3 + zoom	DIP6	LED lighting
EA GE240-7KCV24	240x128	151x104x36	3 + zoom	DIP6	Negative FSTN blue, CFL lighting
EA GE240-7K2CV24	240x128	170x105x36	3 + zoom	DIP6	Negative FSTN black/white,CFL lighting

Graphics kits in housing/with front panel - EA KIT160

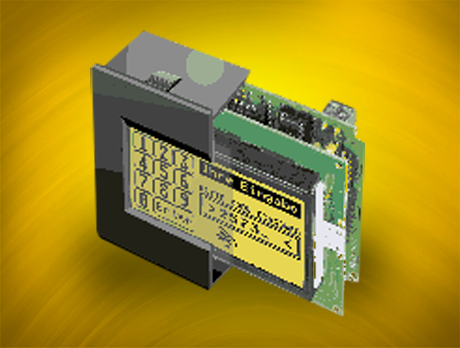

DISPLAY VISIONS offers 3 LCD graphics displays in different sizes in a snap-in housing: EA KIT120, KIT128 and KIT160. 3 further sizes are available with an anodized mounting panel in black or blue: EA KIT240-6, KIT240-7 and KIT320-8. They are controlled via either an RS-232 or an RS-422 interface.
A range of integrated fonts and graphics commands make it easy to program these displays: All functions are programmed with pixel accuracy by means of x/y coordinates (e.g. draw straight line: ESC G x1 y1 x2 y2). All displays are also available with an integrated touch panel: This allows you to make entries or change the contents of the screen by touching it.
Smaller quantities can also be delivered at short notice. You will find more information on the touch panel versions in our internet page "TOUCH"

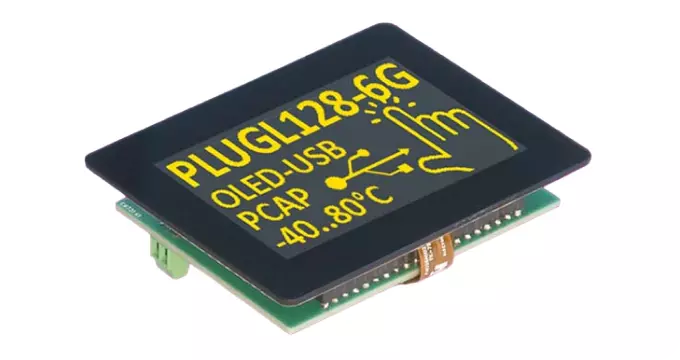

RS-232 and USB

LCD/OLED displays (panels) with USB, RS-232, text and graphics
