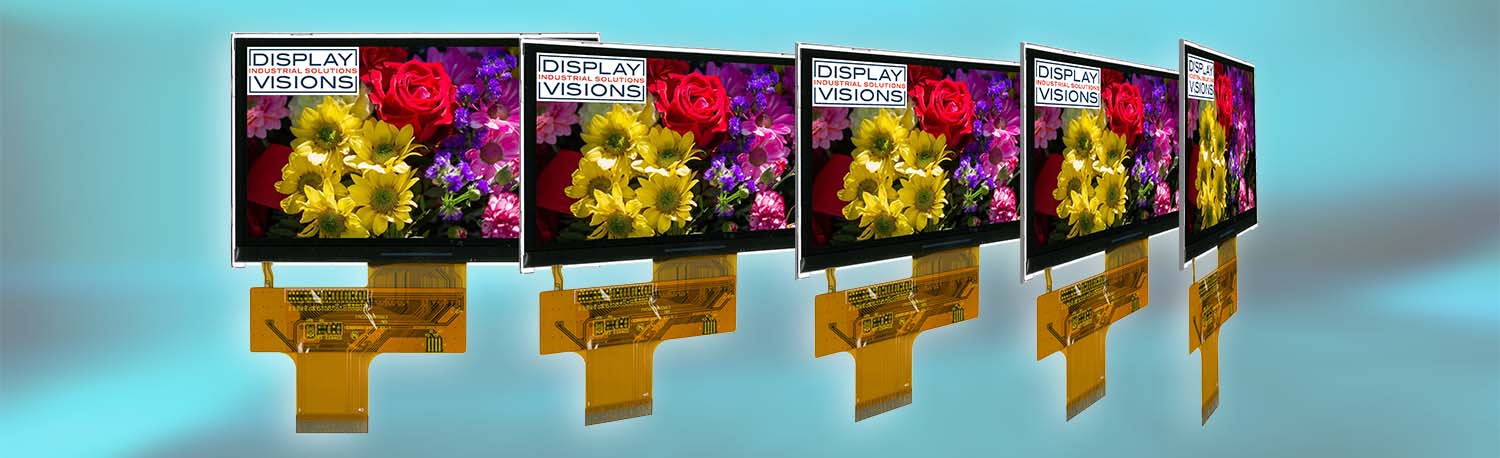

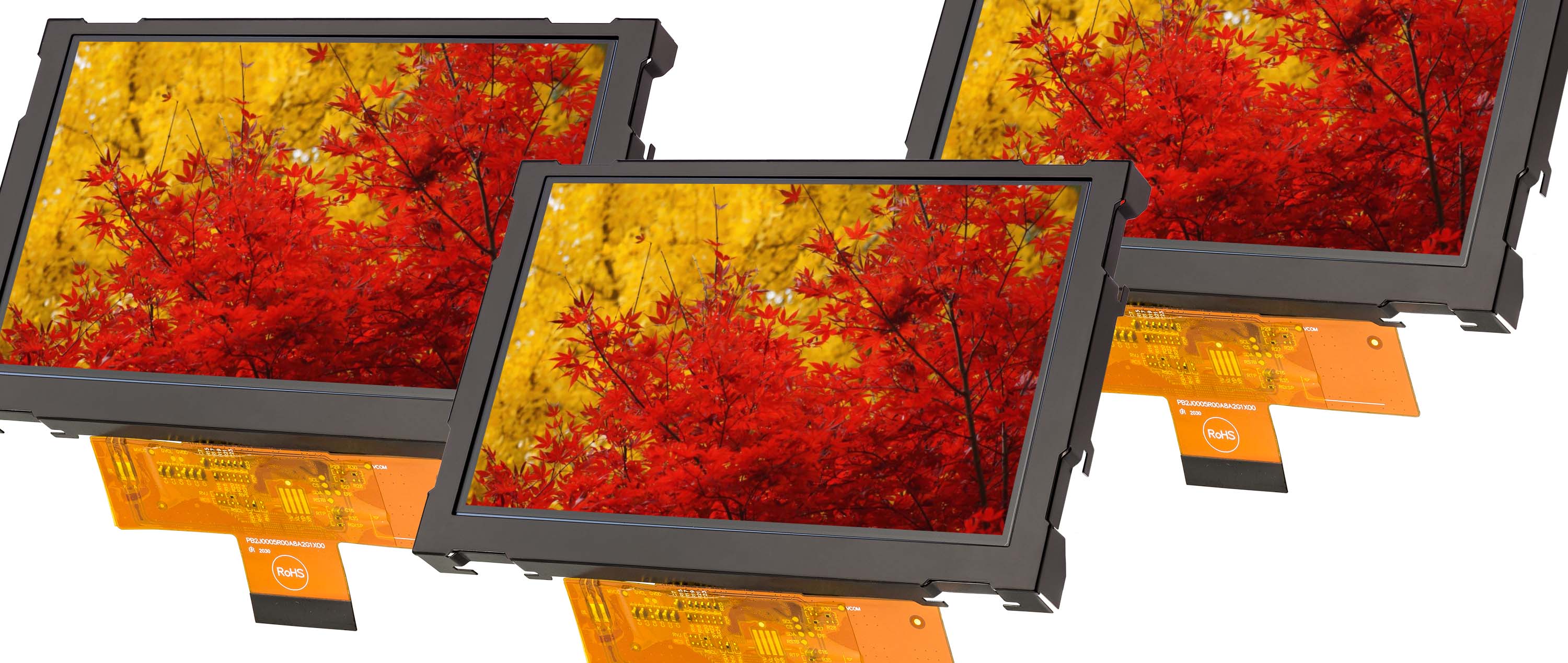

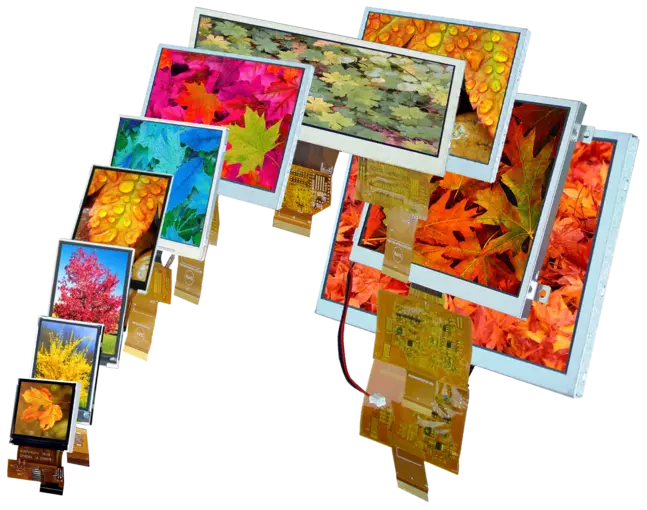

Colorful, bright TFT & IPS graphic displays for installation

The displays have been developed especially for industrial applications and are available for long term. The lifetime is 50,000 hours and the operating temperature range is from -20°C to +70°C.

For the backlighting, bright high-quality LEDs are installed. With a brightness of more than 1000cd/m² they are readable even at direct sunlight.

Normally the displays are available ex stock in long term.

You like to replace your 128x64 graphics display (monochrome) with a color display? We have the solution and show you how to do.

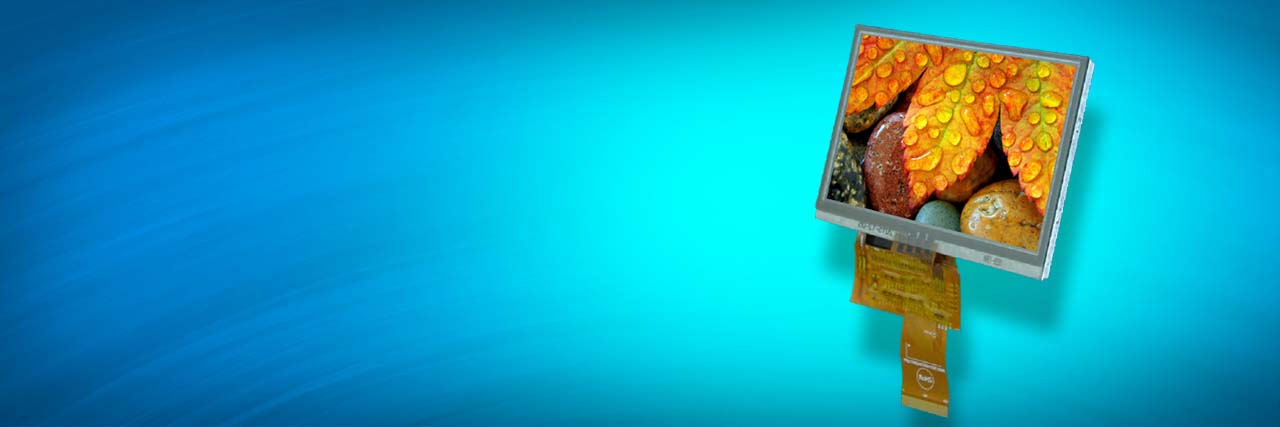

Our TFT color displays with 2.0" / 2.8" / 3.5" are the further development of the widespread black&white graphic displays: simply connected via SPI interface and therefore suitable for all μC. Alternatively, these small TFTs can also be connected via the classic RGB interface or an 8- or 16-bit data bus.

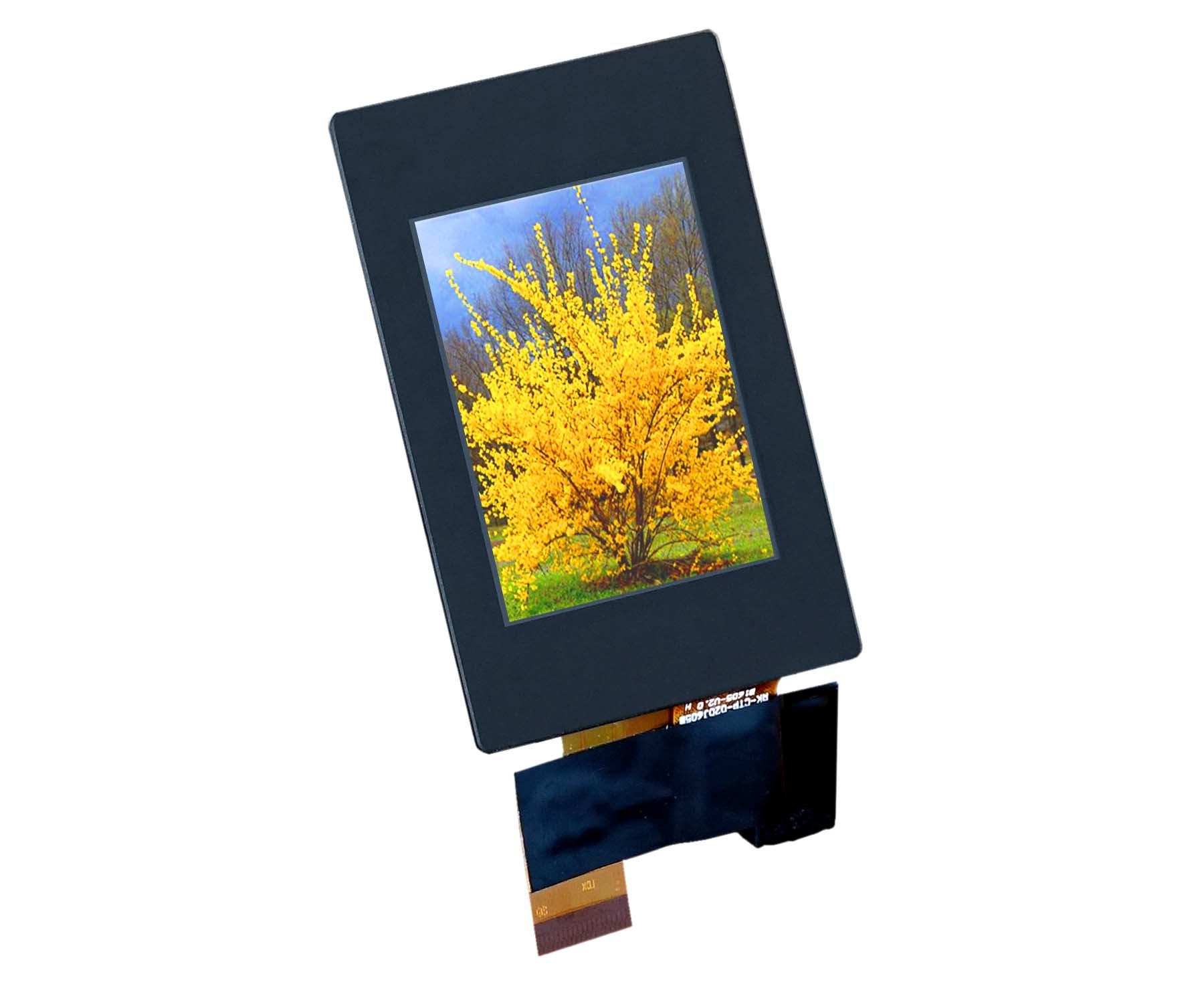

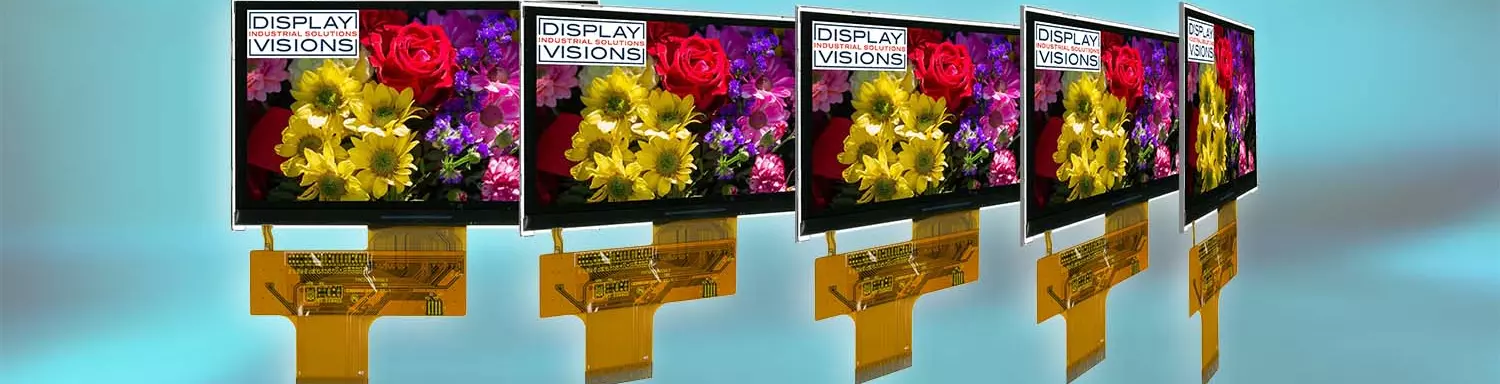

With its 2" diagonal, the EA TFT020-23AI is indeed a tiny, but the fine resolution of 240x320 pixels conjures up brilliant images at crispy 1000cd/m². The IPS technology provides a gigantic all-round viewing angle with sunlight readability:

Long term availability and high quality. Available with and without touch panel.

In addition, a lot of support thanks to many years of experience in the control and use of TFT displays.

Also available as complete HMI with SPI, RS-232 and USB.

With the help of a USB cable, the display is connected directly to the PC or a USB power supply. As a stand-alone it is immediately executable at the power supply. Together with a PC and the Simualtortool. "startTFT.exe" you can display your own images or you change the brightness of the backlight. Rotate the screen content in 90° steps.

Simulatortool: startTFT.zip

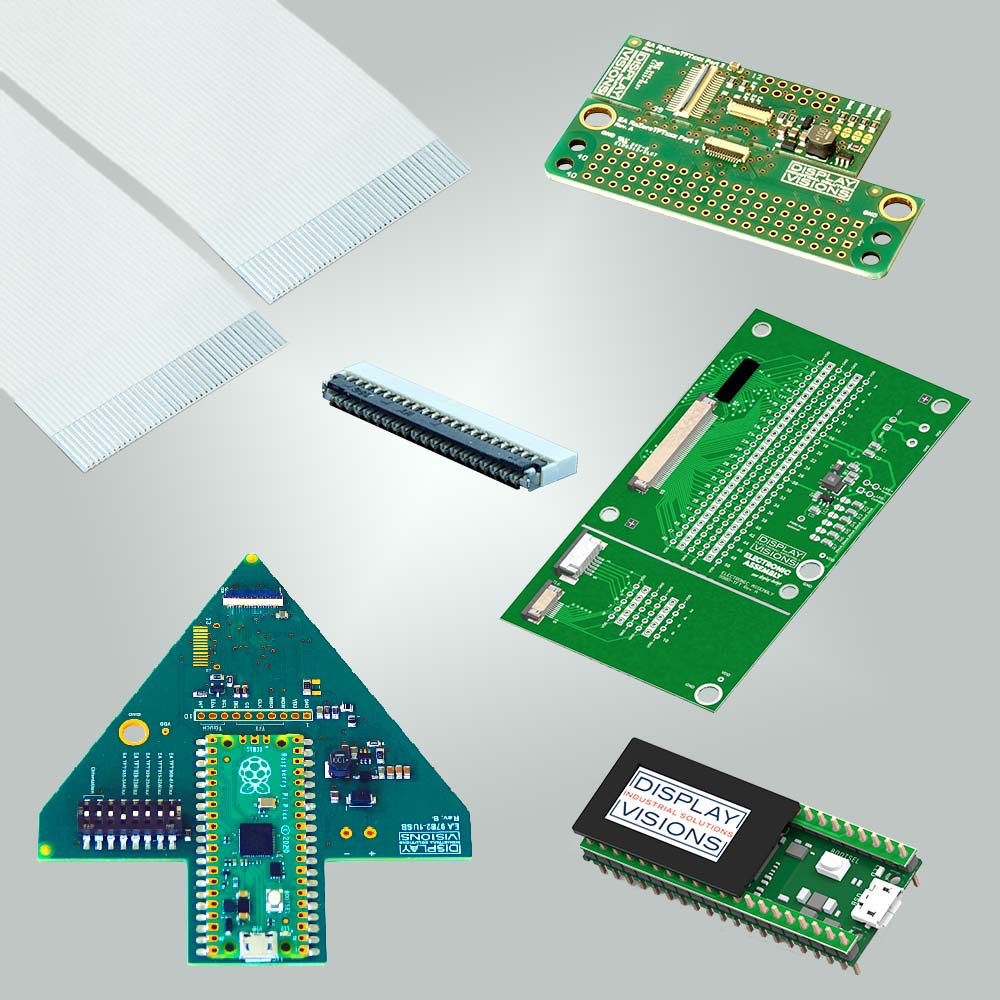

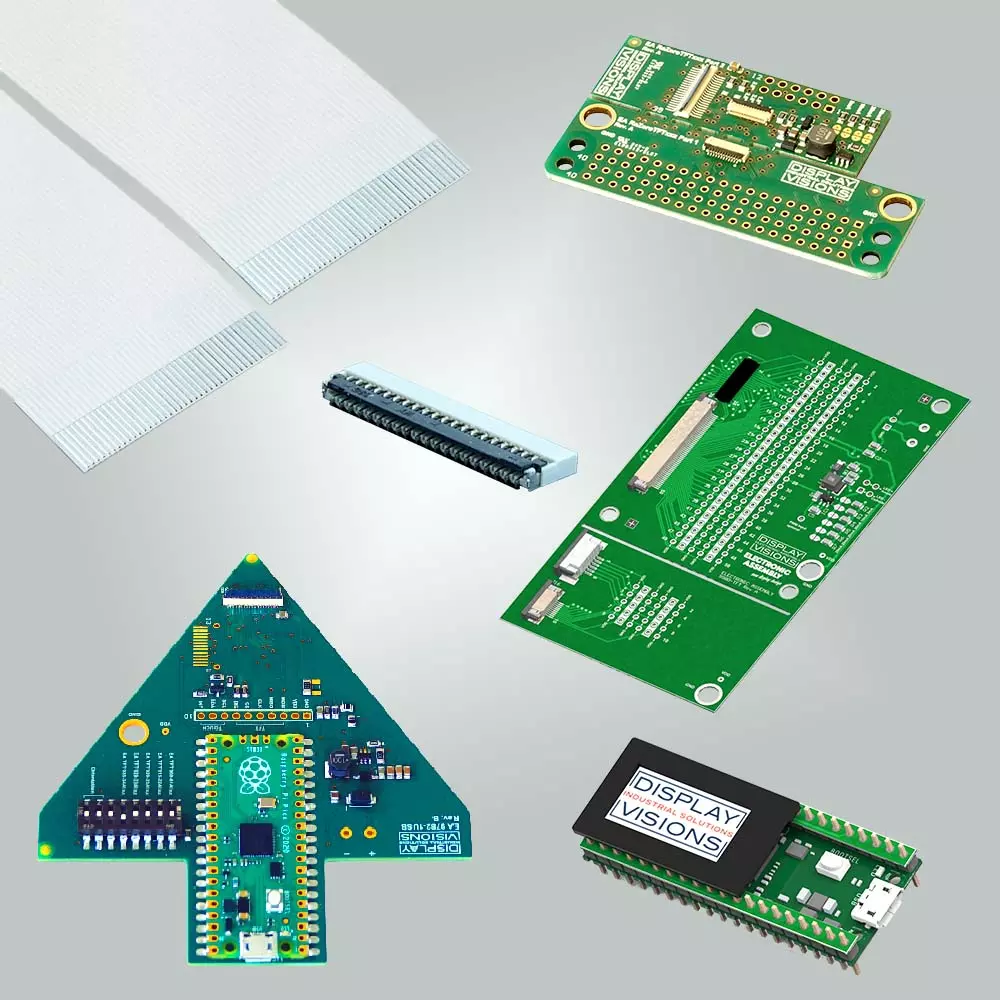

We offer various adapter boards for quick and easy connection to your system (embedded board or microcontroller).

- EA 9980-TFT for connecting a TFT display to various µC boards. With 50- and 39-pin ZIFF connector.

With driver for LED backlight (5-95mA) and touch panel connector (6- and 10-pin ZIFF connector).

- EA RAPICOTFT009: a board with 0.9" display for Raspeberry Pico

- Testboard EA 9782-1USB for smaller displays with 1.5", 2", 2.4", 2.8" and 3.5" for connection to the USB. Incl. driver for LED backlight.

- FPC / flex cable for connecting the display to the board

- ZIFF / FPC connector as counterpart

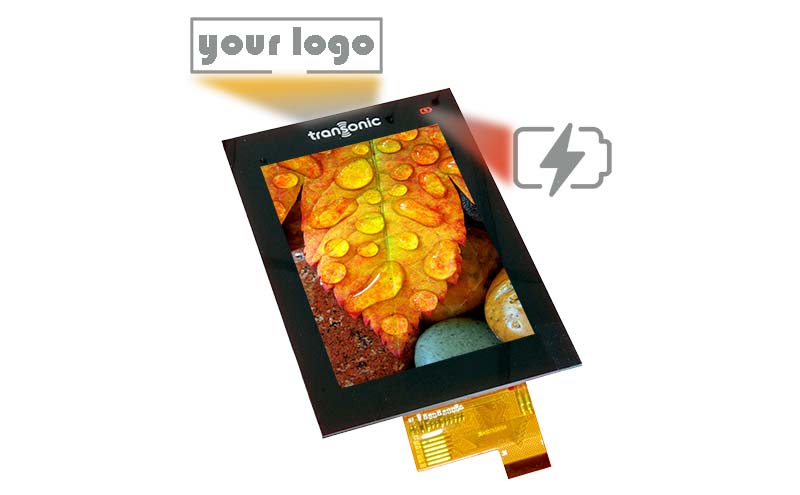

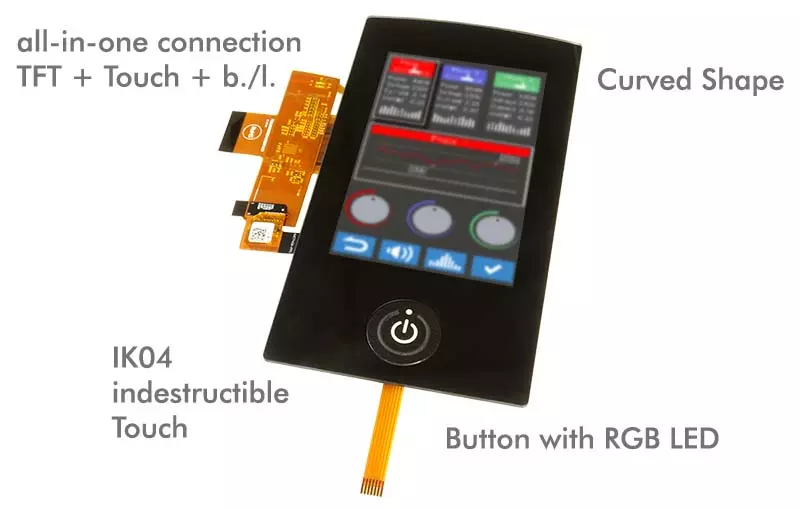

Whether with touch function or as pure protective glass, we offer individual solutions for our TFT displays. In real glass or acrylic.

The panels can be printed in individual colours and provided with a logo, transparent areas are also possible.

Do you need additional tape for easy installation ?

Tell us your individual size and design and we will implement it.

Specific information on each individual display can be found in the table below under "Data sheet".

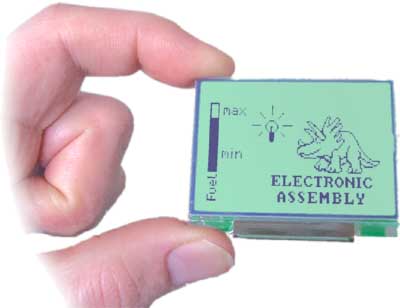

For reliable and compact applications, the COG displays from the EA DOG series are ideally suited: super-flat, 3.3V, low-power with SPI interface and available in at least 16 different colour combinations. Among many different sizes you will find the perfect display not only for your medical or industrial application.

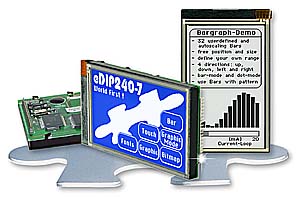

Built-in character sets, graphic functions, adjustable backlight, full touch panel support; these are world-wide unique features. No more working with pixel, but using more than 112 powerful graphic functions. With integrated FLASH for more fonts, pictures and macros. Last but not least there is a cost-free simulator software for the EA eDIP240-7 and a starter kit with USB. Read more about this fine displays on our page eDIP.
