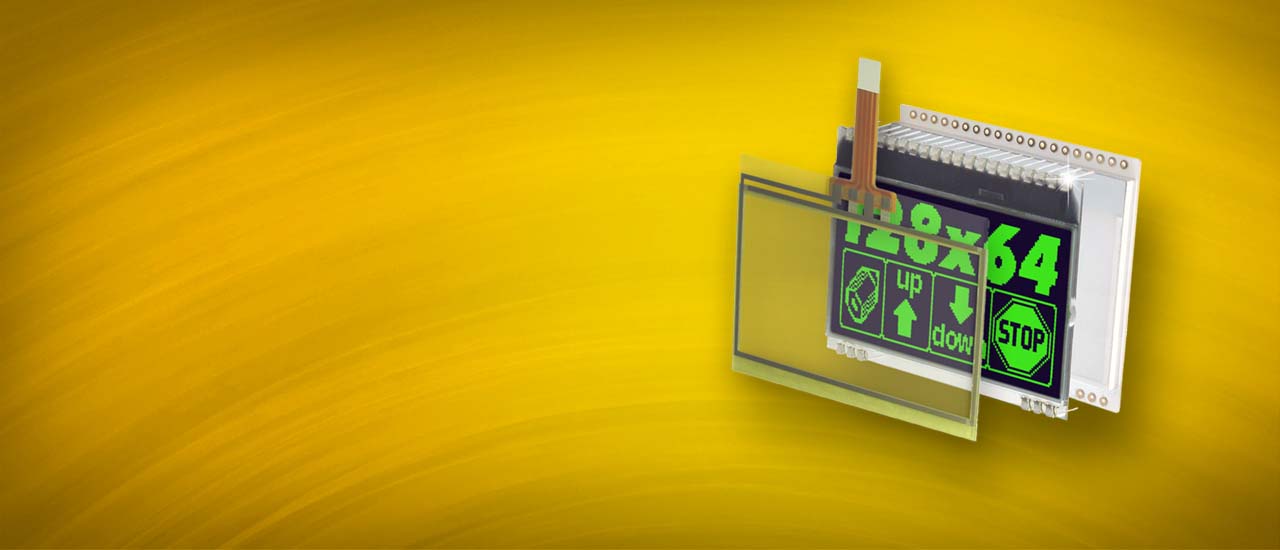

The graphic displays of the EA DOG series can be equipped with an additional touch. This allows elegant input in a very small space. Additional components like buttons and switches are no longer necessary.

The resistive versions can also be operated with gloves or a pen. The capacitive versions have a built-in controller with I²C bus interface.

Both versions can be glued directly onto the display.

Display		Outline	Resistive	PCAP
DOGS102-6	1.7"	39x41mm	TOUCH102-1	TOUCH102-17C1
DOGM128-6	2.3"	55x46mm	TOUCH128-1
DOGL128-6	2.8"	68x51mm	TOUCH128-2	TOUCH128-29C1
DOGXL160-7	3.3"	78x64mm	TOUCH160-1
DOGM240-6	3.6"	94x40mm	TOUCH240-4
DOGXL240-7	3.9"	94x67mm	TOUCH240-3

Accessories like connectors are mentioned in the relating data sheet of the display. Complete operating units including display, touch panel and electronics can be found in our eDIP series.
