Dot Matrix Display modules for 4-/8-bit data bus incl character set

The dot-matrix LCDs offered here are all equipped with the HD 44780 controller or similar; they contain a complete character set and are configured for operation on the 4- or 8-bit data bus of a processor system. There are R/W, RS and enable control lines.

Please ask about special models with an extended temperature range, a "#FF0000">Cyrillic character set or a soldered connector. Semi-customized solutions are possible as of 250 units. The accessories we supply for dot-matrix LCDs include suitable bezels, RS-232 interfaces and inverters for displays illuminated by means of EL foils.

Prices if you order in hundreds are between EUR 5.75 and EUR 192.76*) per unit (plus sales tax, if applicable, and shipping costs). We have a large stock and can thus deliver many models immediately from our warehouse in Gilching near Munich.

1 line, 8 characters
Item description	Char. height	Module dimensions W x H x D	Window W x H	Connection	Bezel accessories	Notes	Photo
EA 8081-A3N	7.1	40.0 x 19.7 x 7.8	33.0 x 10.0	DIL pins	---
EA DOGM081	11.97	55.0 x 31.0 x 5.8	51.0 x 14.5	DIL pins	---	no more mounting
EA DIP081-CNLED	11.48	68.0 x 27.0 x 11.0	61.0 x 19.0	DIL pins	---	no more mounting
EA WK-2018N	10.75	84.0 x 44.0 x 12.0	61.0 x 15.8	2+1x16	017-2U
You can download the complete dot-matrix 1x8 data sheet in PDF format here.

1 line, 16 characters
Item description	Char. height	Module dimensions W x H x D	Window W x H	Connection	Bezel accessories	Notes	Photo
EA J161-D	6.6	80.0 x 36.0 x 10.0	64.5 x 13.8	1x16	017-1U	Organization (8+8)
EA P161-D	6.6	80.0 x 36.0 x 10.3	64.5 x 13.8	1x14	017-1U	Organization (8+8)
EA W161-DNLED	6.6	80.0 x 36.0 x 14.5	64.5 x 13.8	1x16	017-1U	Organization (8+8)
EA P161-DNLED	6.6	80.0 x 36.0 x 14.5	64.5 x 13.8	1x16	017-1U	Organization (8+8)
EA VK-2005NLED	7.9	80.0 x 36.0 x 12.0	61.0 x 15.8	1x16	017-2U	Organization (8+8)
EA P161-ENLED	9.7	122.0 x 33.0 x 14.0	99.0 x 13.0	1x14+2	017-6U	LBOX, org. (8+8)
EA W161B-ENLW	9.7	122.0 x 33.0 x 14.0	99.0 x 13.0	1x14+2	017-6U	BlueLine, org. (8+8)
You can download the complete dot-matrix 1x16 data sheet in PDF format here.

1 line, 20 characters
Item description	Char. height	Module dimensions W x H x D	Window W x H	Connection	Bezel accessories	Notes	Photo
EA J201-A	7.23	116.0 x 37.0 x 9.0	91.2 x 18.6	2x8	---	LBOX
EA P201-GHNLED	14.5	180.0 x 40.0 x 15.3	149.0 x 23.0	2x8	017-26	LBOX, Vee approx. -3V
You can download the complete dot-matrix 1x20 data sheet in PDF format here.

2 lines, 8 characters
Item description	Char. height	Module dimensions W x H x D	Window W x H	Connection	Bezel accessories	Notes	Photo
EA DIPS082-HN	5.01	40 x 20 x 7.8	36.3 x 13.9	DIL pins	---	no more mounting
EA P082-N2LED	5.6	58.0 x 32.0 x 14.0	38.0 x 16.0	2x7	---	LBOX
EA P082-CHNLED	11.56	84.0 x 44.0 x 13.7	63.0 x 25.0	1x16	017-8UKE	LBOX
You can download the complete dot-matrix 2x8 data sheet in PDF format.

2 lines, 12 characters
Item description	Char. height	Module dimensions W x H x D	Window W x H	Connection	Bezel accessories	Notes	Photo
EA P122-ANLED	5.5	55.7 x 32.0 x 13.0	46.7 x 14.5	1x15	(055)?	Connection grid 1.27mm
You can download the complete dot-matrix 2x12 data sheet in PDF format.

2 lines, 12 characters
Item description	Char. height	Module dimensions W x H x D	Window W x H	Connection	Bezel accessories	Notes	Photo
EA P122-ANLED	5.5	55.7 x 32.0 x 13.0	46.7 x 14.5	1x15	(055)?	Connection grid 1.27mm
You can download the complete dot-matrix 2x12 data sheet in PDF format.

2 lines, each with 16 characters
Item description	Char. height	Module dimensions W x H x D	Window W x H	Connection	Bezel accessories	Notes	Photo
EA T162G-3NLED	3.2	53.0 x 20.0 x 8.5	36.0 x 10.0	Flexible cable	---	LPIPE, KF-16G req.
EA DOGM162	5.57	55.0 x 31.0 x 5.8	51.0 x 14.5	DIL pins	---	no more mounting
EA DIP162-DNLED	6.68	68.0 x 27.0 x 11.0	61.0 x 19.	DIL pins	017-2U	no more mounting
EA DIP162-DN3LW	6.68	68.0 x 27.0 x 11.0	61.0 x 19	DIL pins	017-2U	BlueLine
EA P162-C	4.4	80.0 x 36.0 x 10.2	64.5 x 13.8	1x14	017-1U
EA P162-CNLED	4.4	80.0 x 36.0 x 14.2	64.5 x 13.8	1x14+2	017-1U	LBOX
EA P162-EFLEX	5.6	66.7 x 25.9 x 4.2	61.0 x 15.9	Flexible cable	017-2U	Cable in 1.0 grid
EA P162-T2NLED	5.6	66.7 x 25.9 x 5.4	61.0 x 15.9	Flexible cable	017-2U	Cable in 1.0 grid
EA P162-N3LED	5.6	80.0 x 36.0 x 11.5	61.0 x 16.0	1x16	017-2U	LBOX
EA W162-N3LED	5.6	80.0 x 36.0 x 11.5	61.0 x 16.0	1x16	017-2U	LBOX
EA J162-N	5.6	84.0 x 44.0 x 10.0	61.0 x 15.8	1x16	017-2U
EA W162-N4LED	5.6	80.0 x 36.0 x 9.7	66.0 x 16.0	1x16	017-2U	LPIPE
EA P162-N	5.6	84.0 x 44.0 x 9.7	61.0 x 15.8	1x16	017-2U
EA P162-NLED	5.6	84.0 x 44.0 x 14.0	61.0 x 15.8	1x16	017-2U	LBOX
EA W162-LED	5.6	84.0 x 44.0 x 14.0	61.0 x 16.0	1x14+2	017-2U	LBOX
EA W162B-NLW	5.6	84.0 x 44.0 x 11.0	61.0 x 16.0	1x14+2	017-2U	BlueLine
EA P162-N9LED	5.6	85.0 x 32.6 x 14.5	61.0 x 15.8	2x7+2	017-2U	LBOX
EA P162-BN	9.7	122.0 x 44.0 x 10.0	99.0 x 24.0	1x14	017-12U
EA P162-BNLED	9.7	122.0 x 44.0 x 14.0	99.0 x 24.0	1x14+2	017-12U	LBOX
EA W162-BNLED	9.7	122.0 x 44.0 x 14.0	99.0 x 24.0	1x14+2	017-12U	LBOX

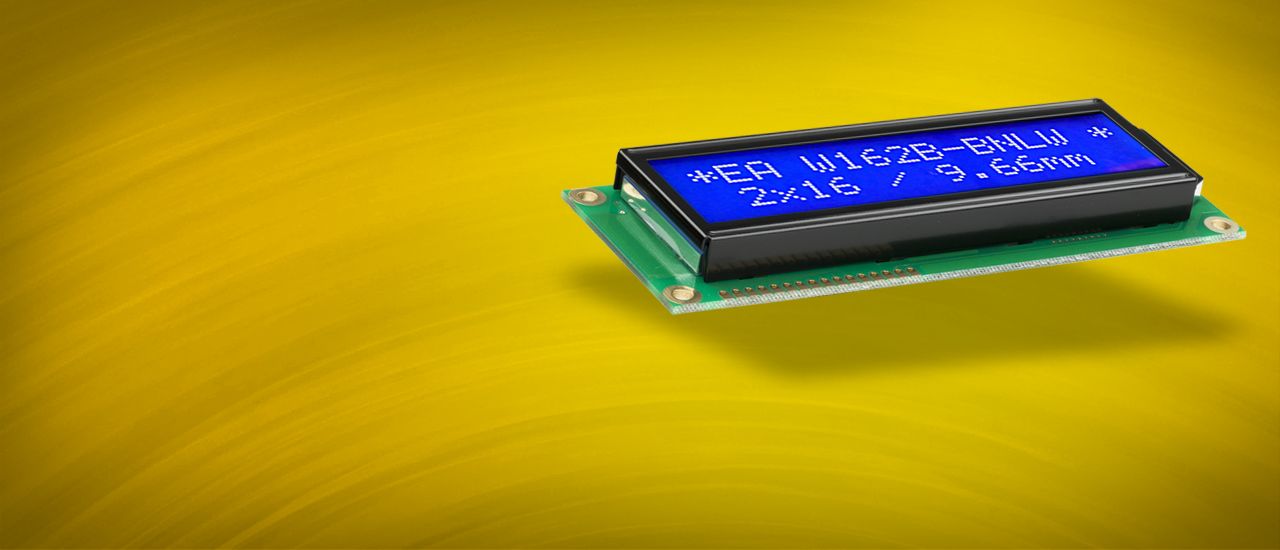

EA W162B-BNLW	9.7	122.0 x 44.0 x 14.5	99.0 x 24.0	1x16	017-12U	BlueLine
You can download the complete dot-matrix 2x16 data sheet in PDF format.

2 lines, each with 20 characters
Item description	Char. height	Module dimensions W x H x D	Window W x H	Connection	Bezel accessories	Notes	Photo
EA J202-NLED	5.6	116.0 x 40.0 x 10.0	83.0 x 18.6	2x8	017-7U	LBOX
EA P202-BNLED	5.6	116.5 x 39.0 x 14.5	85.0 x 18.6	2x8	017-7U	LBOX
EA W202B-NLW	5.6	116.5 x 39.0 x 14.5	85.0 x 18.6	2x8	017-7U	BlueLine
EA 8202-BNLED	9.2	146.0 x 43.0 x 14.0	123.0 x 23.0	1x14+2	017-24	LBOX, TV possible, -3V
EA P202-B2HNLED	9.2	146.0 x 43.0 x 13.7	123.0 x 23.0	1x14+2	017-24	LBOX, Vee approx. -3V
EA P202-B3HNLED	9.7	180.0 x 40.0 x 15.3	149.0 x 23.0	2x8	---	LBOX, Vee approx. -3V
EA E202-CNLW	12.7	182.0 x 60.0 x 12.0	147.0 x 35.2	2x8	017-27	BlueLine
You can download the complete dot-matrix 2x20 data sheet in PDF format.

2 lines, each with 24 characters
Item description	Char. height	Module dimensions W x H x D	Window W x H	Connection	Bezel accessories	Notes	Photo
EA P242-NLED	5.6	118.0 x 36.0 x 14.0	93.5 x 15.8	2x8	017-14U	LBOX
EA W242B-NLW	5.6	118.0 x 36.0 x 12.0	93.5 x 15.8	2x8	017-14U	BlueLine
EA P242-N	5.6	118.0 x 36.0 x 10.5	93.5 x 15.8	2x7	017-14U
EA P242-BHN	9.6	208.0 x 40.0 x 9.6	178.0 x 23.0	2x7	---	Vee approx. -3V
EA P242-BHNLED	9.6	208.0 x 40.0 x 13.8	178.0 x 23.0	2x8	---	Vee approx. -3V
You can download the complete dot-matrix 2x24 data sheet in PDF format here.

2 lines, each with 40 characters
Item description	Char. height	Module dimensions W x H x D	Window W x H	Connection	Bezel accessories	Notes	Photo
EA W402-NLED	5.6	182.0 x 33.5 x 14.0	152.5 x 16.5	2x7+2	017-4U	LBOX
EA W402B-NLW	5.6	182.0 x 33.5 x 12	154.1 x 15.3	2x8	017-4U	BlueLine
EA P402-NLED	5.6	182.0 x 33.5 x 14.5	154.1 x 15.3	2x8	017-4U	LBOX
You can download the complete dot-matrix 2x40 data sheet in PDF format.

3 lines, each with 16 characters
Item description	Char. height	Module dimensions W x H x D	Window W x H	Connection	Bezel accessories	Notes	Photo
EA DOGM163	3,6	55.0 x 31.0 x 5.8	51.0 x 14.5	DIL Pins	---	no more mounting
You can download the complete data sheet in PDF format.

4 lines, each with 12 characters
Item description	Char. height	Module dimensions W x H x D	Window W x H	Connection	Bezel accessories	Notes	Photo
EA C124-NLED	6.75	63.2 x 55.0 x 12.5	55.0 x 36.0	1x16	(017-17U)?	Very easy to read
You can download the complete EA C124-NLED data sheet in PDF format.

4 lines, each with 16 characters
Item description	Char. height	Module dimensions W x H x D	Window W x H	Connection	Bezel accessories	Notes	Photo
EA DOGS164-A	3.2/6.0	40.0 x 33.0 x 4.0	37.3 x 19.0	DIL pins	---	no more mounting
EA J164-NLED	4.8	87.0 x 60.0 x 15.0	61.7 x 25.2	1x16	017-8U	LBOX
EA P164-N	4.8	87.0 x 60.0 x 10.5	61.8 x 25.4	1x14	017-8U
EA W164B-NLW	4.8	87.0 x 60.0 x 12.0	61.8 x 25.4	1x14+2	017-8U	BlueLine
EA P164-NLED	4.8	87.0 x 60.0 x 14.0	61.8 x 25.4	1x14+2	017-8U	LBOX
You can download the complete dot-matrix 4x16 data sheet in PDF format here.

4 lines, each with 20 characters
Item description	Char. height	Module dimensions W x H x D	Window W x H	Connection	Bezel accessories	Notes	Photo
EA DIP203-4NLED	3.73	68.0 x 27.0 x 11.0	61.0 x 19.0	DIL pins	---	no more mounting
EA DIP203B-4NLW	3.73	75.0 x 27.0 x 11.0	61.0 x 19.0	DIL pins	---	BlueLine
EA P204-4NLED	4.0	77.0 x 47.0 x 9.6	60.0 x 22.0	1x16	(017-8U)?	LBOX
EA W204B-NLW	4.8	98.5 x 61.0 x 12.0	76.0 x 25.2	1x16	017-9U
EA J204-NLED	4.8	98.0 x 60.0 x 15.0	76.0 x 25.2	1x16	017-9U	LBOX
EA P204-N	4.8	98.0 x 60.0 x 10.5	76.0 x 25.2	1x16	017-9U
EA P204-NLED	4.8	98.0 x 60.0 x 14.5	76.0 x 25.2	1x16	017-9U	LBOX
EA W204-NLED	4.8	98.5 x 60.0 x 15.6	76.0 x 25.2	1x16	017-9U	LBOX
EA DIP203B-6NLW	6.45	75.0 x 46.0 x 11.0	61.0 x 38.0	DIL pins	0FP129-6SW	BlueLine

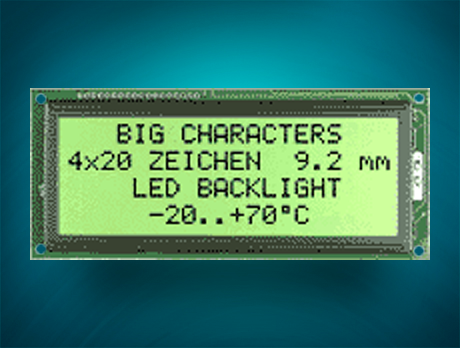

EA P204-BHNLED	9.2	146.0 x 62.5 x 11.0	123.0 x 42.5	1x18	017-25	Vee approx. -3V
EA W204-BNLED	9.2	146.0 x 62.5 x 14.0	123.0 x 42.5	1x14+2	017-25	LBOX
EA T204B-BNLW	9.2	146.0 x 62.5 x 14.0	123.0 x 42.5	1x14+2	017-25	BlueLine
You can download the complete dot-matrix 4x20 data sheet (except EA P204-3N /-4N) in PDF format.

4 lines, each with 40 characters
Item description	Char. height	Module dimensions W x H x D	Window W x H	Connection	Bezel accessories	Notes	Photo
EA W404B-NLW	4.9	190.0 x 54.0 x 14.0	147.0 x 29.5	2x8+2	017-13U	BlueLine
EA W404-NLED	4.9	190.0 x 54.0 x 14.0	147.0 x 29.5	2x8+2	017-13U	LBOX
EA P404-HNLED	4.9	190.0 x 54.0 x 14.0	147.0 x 29.5	2x8+2	017-13U	LBOX, Vee -3V
You can download the complete dot-matrix 4x40 data sheet in PDF format here.

RS-232/RS-422 controllers

RS-232/RS-422 controllers EA 9706-V24

The EA 9707-V24S interface allows dot-matrix LCDs to be programmed easily and quickly. The interface can be soldered directly onto almost all dot-matrix modules. It is connected to a standard RS-232C interface. The data transmission rate can be set to 300, 1200, 2400 or 9600 bps. Umlauts (ä, ö, ü, ß, Ä, Ö, Ü) are interpreted as extended IBM code and recoded. If the display is full, it scrolls upward automatically. CR ($0D,13d) and LF ($0A,10d) are identified and executed. This automatic function can be switched off for individual cursor positioning. The supply voltage is +5V/typ. 1mA. The interface can also be supplied with an RS-422 interface (EA 9707 OPT-RS-422). The EA 9707-V24S can be connected directly to the 9-pin subminiature D connector of a PC, for example, via the EA KV24-9B cable (approx. 1.50m). The price for the standard RS-232 EA 9707-V24S controller if you take a batch of 25 is EUR 44,37 net. Smaller quantities of the interface can be delivered at short notice. You will find more information in our data sheet, which is available in PDF format.

Accessories

Bezels
Bezels with an anti-glare screen are available for some graphics displays. The bezels are simply inserted into the opening in the front panel. This gives your unit a professional look, and at the same time the anti-glare screen prevents the integrated display from being touched or getting dirty. The anti-glare screen makes the display considerably easier to read. Please refer to the tables above for the order numbers of the various bezels. You will find more information on bezels in our data sheet, which is available in PDF format, or on our accessories page.
Inverters for EL foil illumination
In contrast to LED illumination, EL foil illumination require a series-connected electronic circuit. This electronic circuit, which is known as an EL inverter, generates alternating voltage of around 100V from +5V DC. These EL inverters have 3-5 pins that are soldered into a printed circuit board. The type required depends on the illumination surface. You will find more information on our accessories page, our news page or in our data sheet in PDF format.
Cables and connectors
We accept orders of one or more units of the following items for your display: one- or two-row connectors and cables with a grid of 1.27 or 2.54 mm with a female connector (one- or two-row) crimped on, with different numbers of pins and a wide range of lengths.
