PWM Output #H

Command group for the PWM output

Set the PWM frequency and duty cycle

(Hardware PWM Output)

#HFO

Frequency [32-Bit], On Value (no change), Total Value (no change)

Change PWM duty cycle

(Hardware PWM Dutycycle)

#HFD

On Value, Total Value (no change)


Set the PWM frequency and duty cycle

#HFO

Frequency [32-Bit], On Value (no change), Total Value (no change)

Setting the PWM Frequency (32-bit value) (2Hz ... 1MHz).

Frequency

0

Permanent low

1

Permanent high


The two optional parameters On Value and Total Value set the duty cycle:

DutyCycle =

On Value


Total Value

...

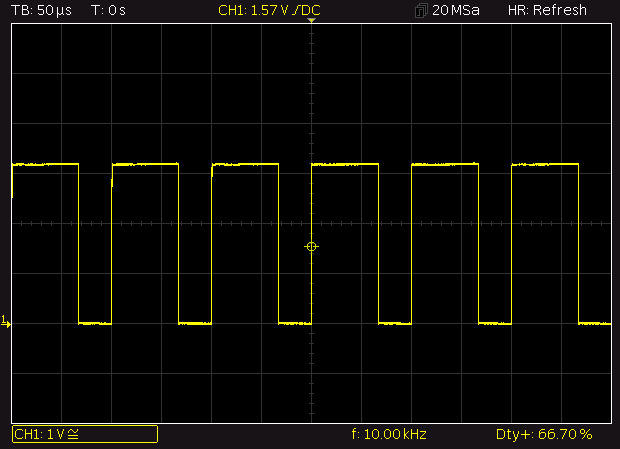

#HFO 10000,2,3

...


Change PWM duty cycle

#HFD

On Value, Total Value (no change)

The command sets the duty cycle with the two parameters On Value and Total Value. The frequency is steady:

DutyCycle =

On Value


Total Value

...

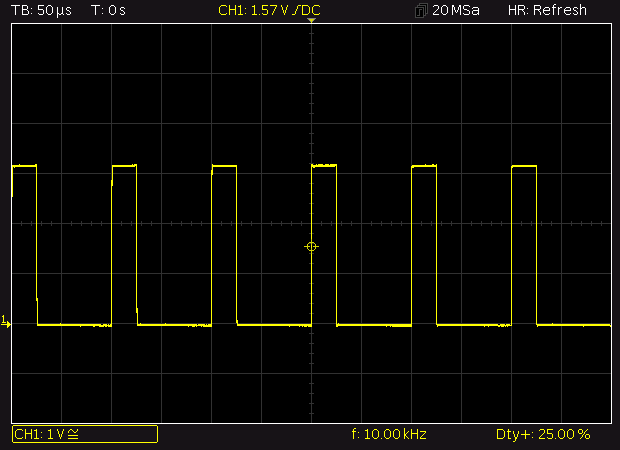

#HFD 1,4

...
