Tablet feeling for your application

EA uniTFT series

Features

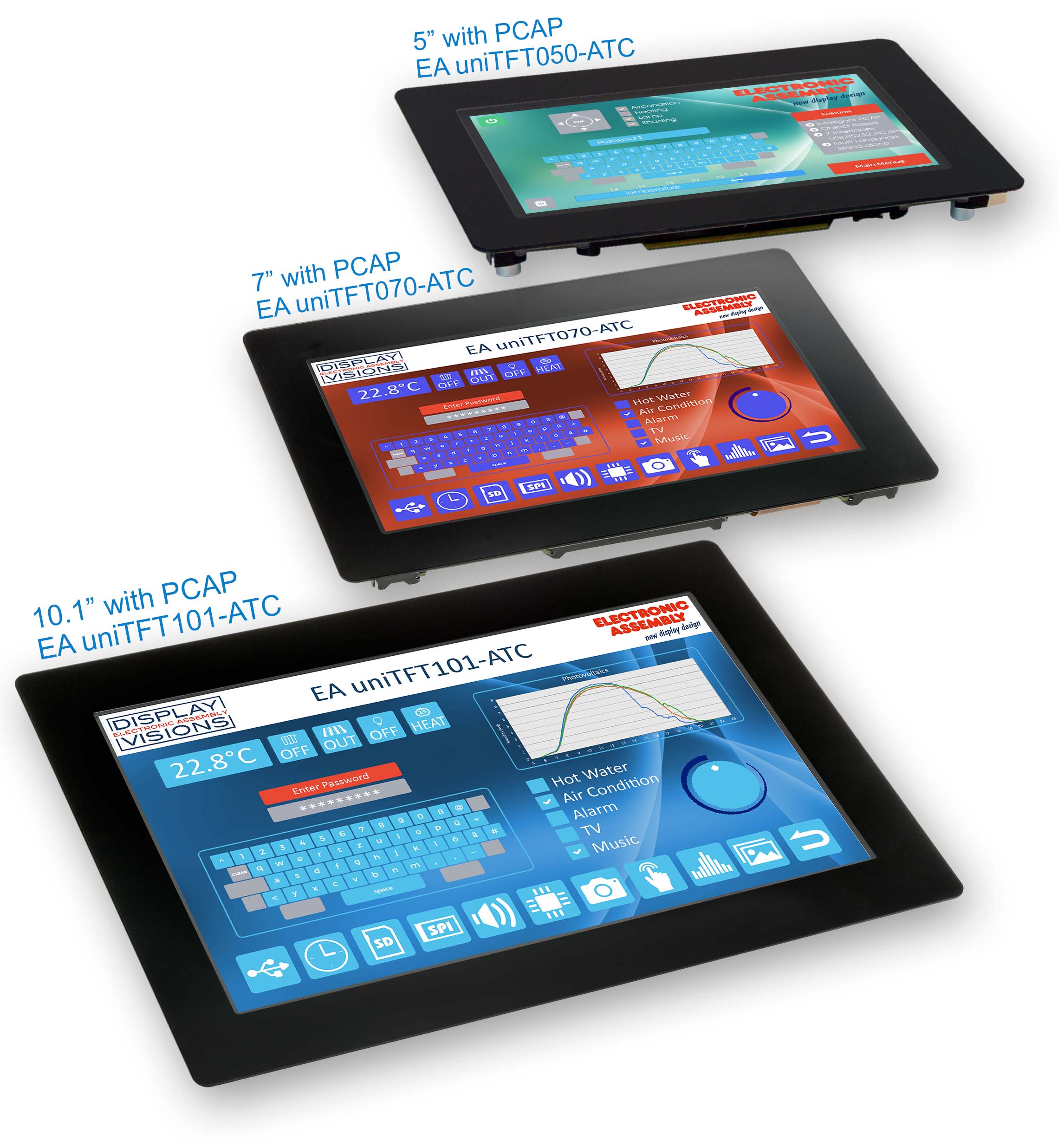

  • 5" IPS with 800x480 dots, 7" IPS with 1024x600 dots and 10.1" IPS with 1280x800 dots
  • With and without touch panel
  • Superbright LED backlight with 900 / 1000 cd/m²
  • Analogue-resistive touch or capacitive multi-touch (PCAP)
  • Object-oriented screen layout
  • Change object during run-time: size, shape, color, content
  • Animate and move objects
  • Vector graphics, lossless zooming and turning
  • Alpha-blending
  • Fonts: vectorized ASCII and Unicode
  • Single supply 3.3 V
  • 7 serial Interfaces: USB, 2 x RS232, 2 x SPI, 2 x I²C
  • 7" size with plastic case and WiFi, RS-485 and LAN
  • 16 digital, freely definable I/Os built in, expandable up to 125
  • 4 analog inputs
  • Time (RTC), battery-buffered
  • Micro SD-Card as storage for pictures, fonts, menus and log-files
  • Internal functions for calculation as well as programmability

ordering code

Displays


Intelligent TFT 5" with 800 x 480 pixels, 24 bit RGB and white LED-backlight (external dimensions: 124 x 78,5 mm)

EA uniTFT050-A

as above, but with capacitive multi-touch (external dimensions: 136 x 96 mm)

EA uniTFT050-ATC

as above, but with resistive touch (external dimensions: 124 x 78.5 mm)

EA uniTFT050-ATP



Intelligent TFT 7" IPS 1024 x 600 pixels, 16 Bit RGB and white LED backlight (external dimensions: 169 x 105 mm)

EA uniTFT070-A

as above, but with capacitive multi-touch (external dimensions: 190 x 125 mm)

with plastic case for wall or panel mount USB, RS-485, WiFi

with plastic case for wall or panel mount USB, RS-485, WiFi, LAN

EA uniTFT070-ATC

EA HMI070WU-16ATCS

EA HMI070LU-16ATCS



Intelligent TFT 10.1" IPS 1280 x 800 pixels, 16 Bit RGB and white LED (external dimensions: 235 x 161 mm)

EA uniTFT101-A

as above, but with capacitive multi-touch (external dimensions: 260 x 185 mm)

EA uniTFT101-ATC



Accessories


Quick-Start Set: Starter board (speaker, reset, interface-breakout, power supply)


   with capacitive 5" display module EA uniTFT050-ATC

EA QUICKuniTFT050C

   with capacitive 7" display module EA uniTFT070-ATC

EA QUICKuniTFT070C

   with capacitive 10.1" display module EA uniTFT101-ATC

EA QUICKuniTFT101C

MicroMatch THT, 26 position mating connector for soldering (2 pieces needed)

EA B2B127M-26T

MicroMatch ribbon cable, 26 position mating connector crimp (2 pieces needed)

EA B2B127M-26Q

Cable (25 cm)with crimped connectors (2 pieces needed)

EA KM-126
