Styles #C

Command group to create and manage styles. The look of each object is based on a style appropriate to the object type. The maximum number of styles available for each style is 500.



DrawStyle

Delete filling

(Style Fill Delete)

#CFD

DrawStyle-No.

Define filling width color

(Style Fill Color)

#CFC

DrawStyle-No., RGB, Opacity(100)

Define filling with linear gradient

(Style Fill Linear)

#CFL

DrawStyle-No, ColorRamp-No, Angle(0)

Define filling with radial gradient

(Style Fill Radial)

#CFR

DrawStyle-No, ColorRamp-No, FocusX (5000), FocusY (0)

Define filling with conical gradient

(Style Fill Conial)

#CFK

DrawStyle-No, ColorRamp-No, FocusX(5000), FocusY(0), Direction(1)

Define filling with pattern

(Style Fill Pattern)

#CFP

DrawStyle-No, <PatternName> Size(100), Angle(0), RepeatMode(0), FocusX(5000), FocusY(0), PatternAnchor(5)

Change angle of linear gradient

(Style Fill Angle)

#CFA

DrawStyle-No, Angle

Change gradient

(Style Fill Garient)

#CFG

DrawStyle-No, ColorRamp-No.

Change focus of gradient

(Style Fill Focus)

#CFF

DrawStyle-No, FocusX, FocusY, PatternAnchor (no change)

Change pattern

(Style Fill pattern Name)

#CFN

DrawStyle-No, <PatternName>

Change size of pattern

(Style Fill Size)

#CFS

DrawStyle-No, Size

Change repeat mode of pattern

(Style Fill Tilemode)

#CFT

DrawStyle-No, RepeatMode

Delete line

(Style Line Delete)

#CLD

DrawStyle-No.

Define line color and thickness

(Style Line Style)

#CLS

DrawStyle-No, RGB, Opacity(100), Width(1), JoinStyle(0), LinePattern-No (0)

Change line color

(Style Line Color)

#CLC

DrawStyle-No, RGB, Opacity (no change)

Change line with

(Style Line Width)

#CLW

DrawStyle-No, Width

Change join style

(Style Line End)

#CLE

DrawStyle-No, JoinStyle

Chance line pattern

(Style Line dash Pattern)

#CLP

DrawStyle-No, RGB, LinePattern-No

TextStyle

Define TextStyle

(Style Text Font)

#CTF

TextStyle-No, <FontName>, Size(20), Alignment(0), DrawStyle-No.(0), Italic(0), LineSpace (0), CharacterSpace (0)

Change font

(Style Text Name)

#CTN

TextStyle-No, <FontName>

Change size

(Style Text Size)

#CTS

TextStyle-No, Size

Change alignment

(Style Text Align)

#CTA

TextStyle-No, Alignment

Change DrawStyle

(Style Text drawstyle)

#CTC

TextStyle, DrawStyle-No

Set italic font

(Style Text Italic)

#CTI

TextStyle, Italic

Change spacing

(Style Text Gap)

#CTG

TextStyle, LineSpace, CharacterSpace (no change)

Change space width

(Style Text space Width)

#CTW

TextStyle-No, SpaceCode, SpaceWidth(100)

ButtonStyle

Define picture ButtonStyle

(Style Button Picture)

#CBP

ButtonStyle-No, <ButtonNameNormal>, <ButtonNameDown> (=Normal), Width(0), Height(0)

Define ButtonStyle

(Style Button Drawstyle)

#CBD

ButtonStyle-No, DrawStyle-Normal, DrawStyle-Down (=Normal), Width (0), Height (0), Radius(0)

Define Text

(Style Button Textstyle)

#CBT

ButtonStyle-No, TextStyleNormal, TextStyleDown (=Normal), OffsetX(0), OffsetY(0)

Define DownEvent

(Style Button Offset)

#CBO

ButtonStyle-No, OffsetX(0), OffsetY (=OffsetX), Size(100), Angle(0)

Define sound for DownEvent

(Style Button Sound)

#CBS

ButtonStyle-No, <SoundName>

Define disabled ButtonStyle

(Style Button Greyout)

#CBG

R (-30), G (=R), B (=R)

ColorRamp

Define ColorRamp

(Style Color Ramp)

#CCR

ColorRamp-No, Offset1, RGB1, Transparency1, ... Offset10, RGB10, Transparancy10

Animate ColorRamp

(Style Animate Colorramp)

#CAC

ColorRamp-No, Type (1), Time (100)

LinePattern

Define line pattern

(Style Dash Pattern)

#CDP

LinePattern-No, Offset, Set1, Space1, ..., Set10, Space10

Animate line pattern

(Style Animate Dashpattern)

#CAD

LinePattern-No, Type (1), Time (100)

DrawStyle


Delete filling

#CFD

DrawStyle-No.

This command deletes the filling of the DrawStyle (DrawStyle No.).

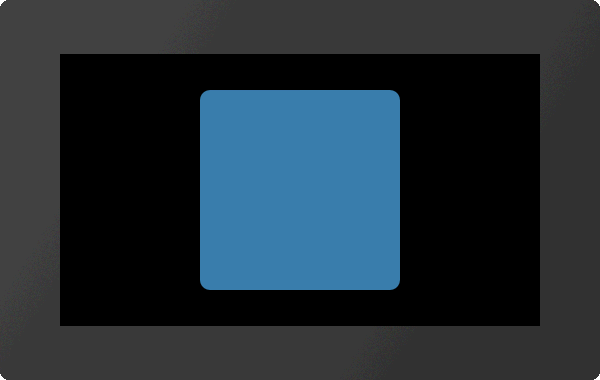

Define filling width color

#CFC

DrawStyle-No., RGB, Opacity(100)

A full-color (RGB) fill is assigned to the DrawStyle (DrawStyle No.). The Opacity can be set as a percentage

...

#CFC 15,$3B7EAE

...

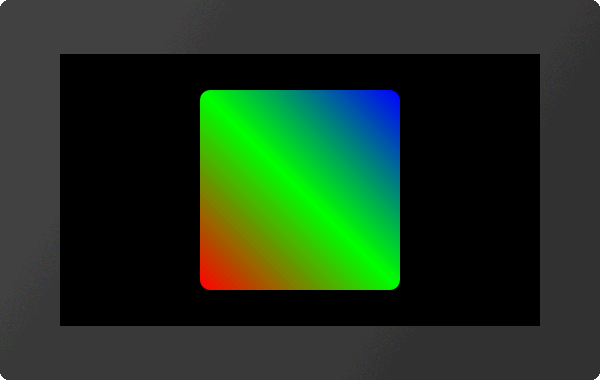

Define filling with linear gradient

#CFL

DrawStyle-No, ColorRamp-No, Angle(0)

The DrawStyle (DrawStyle No.) is assigned a linear gradient (ColorRamp-No.). The gradient must be defined in advance with the #CCR command. The orientation can optionally be specified (Angle in degrees).

...

#CCR 5,0,$FF0000,100,50,$00FF00,100,100,$0000FF,100

#CFL 15,5,45

...

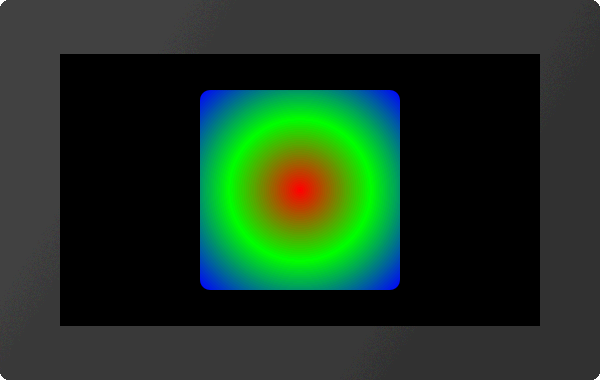

Define filling with radial gradient

#CFR

DrawStyle-No, ColorRamp-No, FocusX (5000), FocusY (0)

The DrawStyle (DrawStyle No.) is assigned a radial gradient (ColorRamp-No). The gradient must be defined in advance with the #CCR command. The focus determines the starting point of the course as a percentage. With FocusX = 5000, the anchor to be used as the starting point of the gradient is specified with FocusY.

...

#CCR 5,0,$FF0000,100,50,$00FF00,100,100,$0000FF,100

#CFR 15,5,5000,5

...

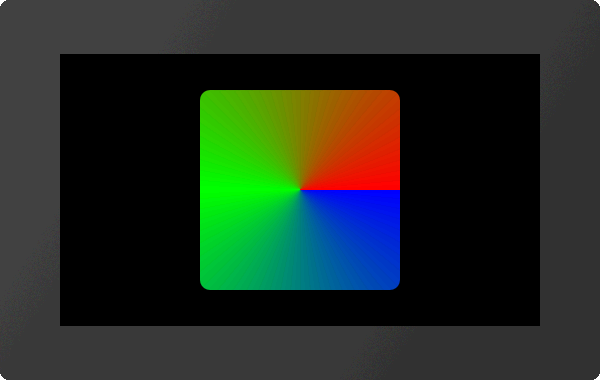

Define filling with conical gradient

#CFK

DrawStyle-No, ColorRamp-No, FocusX(5000), FocusY(0), Direction(1)

The DrawStyle (DrawStyle No.) is assigned a conical gradient (ColorRamp-No). The gradient must be defined in advance with the #CCR command. The focus determines the starting point of the course as a percentage. With FocusX = 5000, the anchor to be used as the starting point of the gradient is specified with FocusY. The optional parameter Direction specifies the direction of rotation.

Direction

0

Counterclockwise

1

Clockwise

...

#CCR 5,0,$FF0000,100,50,$00FF00,100,100,$0000FF,100

#CFK 15,5,5000,5,0

...

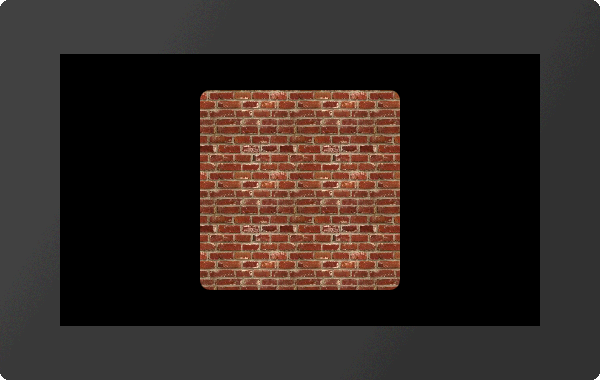

Define filling with pattern

#CFP

DrawStyle-No, <PatternName> Size(100), Angle(0), RepeatMode(0), FocusX(5000), FocusY(0), PatternAnchor(5)

A pattern (<PatternName>) is used as a fill for the DrawStyle (DrawStyle No.). The size is given proportionally as a percentage. The optional parameter RepeatMode specifies the type of image repetition:

RepeatMode

0

Repeat the pattern

1

Mirror the pattern

The focus determines the percentage of the starting point of the pattern. With FocusX = 5000, the anchor to be used as the starting point of the pattern is specified with FocusY. The pattern is set directly to the focus point with the PatternAnchor.


...

#CFP 15,<P:pattern/Brick.epg>,40

...

...

#CFP 15,"Brick";40

...


Change angle of linear gradient

#CFA

DrawStyle-No, Angle

The Angle of a linear gradient is changed.


Change gradient

#CFG

DrawStyle-No, ColorRamp-No.

A new gradient is assigned to the DrawStyle (ColorRamp-No)


Change focus of gradient

#CFF

DrawStyle-No, FocusX, FocusY, PatternAnchor (no change)

The focus determines the starting point of the course or the pattern as a percentage. With FocusX = 5000, the anchor to be used as the starting point of the course is specified with FocusY. The last parameter (PatternAnchor) is only necessary for patterns: The pattern is set directly to the focus point with the PatternAnchor.


Change pattern

#CFN

DrawStyle-No, <PatternName>

A new pattern (<PatternName>) will be assigned to the filling.



Change size of pattern

#CFS

DrawStyle-No, Size

The command changes the size of the pattern. The Size is given proportionally as a percentage.


Change repeat mode of pattern

#CFT

DrawStyle-No, RepeatMode

The command specifies how the individual patterns are lined up:

RepeatMode

0

Repeat the pattern

1

Mirror the pattern


Delete line

#CLD

DrawStyle-No

This command deletes the line of the DrawStyle (DrawStyle No.).


Define line color and thickness

#CLS

DrawStyle-No, RGB, Opacity(100), Width(1), JoinStyle(0), LinePattern-No (0)

The command defines the line color (RGB), the Opacity (in percent) and the line Width in pixels. The JoinStyle parameter determines the type of line end or the connection of two lines:

JoinStyle

0

Miter

1

Round

With the last parameter, the style of the line can optionally be set (e.g. dashed). For this, a line pattern (LinePattern-No.) must be defined.


Change line color

#CLC

DrawStyle-No, RGB, Opacity (no change)

Assign a new color (RGB) to the line.


Change line width

#CLW

DrawStyle-No, Width

Change the thickness of the line.


Change join style

#CLE

DrawStyle-No, JoinStyle

Change the join style of the line

JoinStyle

0

Mitered

1

Rounded



Change line pattern

#CLP

DrawStyle-No, RGB, LinePattern-No

The command changes the style of the line (e.g. dashed) For this a line pattern (LinePattern-No) must be defined.



TextStyle

Define TextStyle

#CTF

TextStyle-No, <FontName>, Size(20), Alignment(0), DrawStyle-No.(0), Italic(0), LineSpace (0), CharacterSpace (0)

Definition of a TextStyle with font (<FontName>), Size (in pixels; = 0 original size only applies to image fonts) and Alignment.

Alignment

0

Left

1

Center

2

Right

Specifying the alignment is only useful for multiline texts. The position of the text object itself is determined by the anchor (e.g. anchors 3, 6, and 9 for right-aligned).


The DrawStyle specifies the color. For performance reasons, we recommend simple filling without an outline. Italic enables italics and is specified in degrees (-45 ° ... + 45 °)Italic is not applicable, please set this parameter to 0. Italic is only possible with the EA uniTFT-series. The remaining two parameters specify the LineSpacing and additional CharacterSpacing.


Change font

#CTN

TextStyle-No, <FontName>

The command changes the font (<FontName>) of the TextStyle.



Change style

#CTS

TextStyle-No, Size

The Size (in pixels) of the font is changed (size = 0 original size is used; only for image fonts).


Change alignment

#CTA

TextStyle-No, Alignment

The command changes the Alignment of the text.

Alignment

0

Left

1

Center

2

Right


Change DrawStyle

#CTC

TextStyle, DrawStyle-No

Change color using the DrawStyle (DrawStyle No.).



Set italic font

#CTI

TextStyle, Italic

Italic font: Set Italic in degrees (-45 ° ... + 45 °).



Change spacing

#CTG

TextStyle, LineSpace, CharacterSpace (no change)

An additional LineSpacing or CharacterSpacing is defined (in % of the character height). Negative values are also allowed.


Change space width (from V1.2)

#CTW

TextStyle-No, SpaceCode, SpaceWidth(100)

The width of the space can be taken from any other code (SpaceCode). The width can also be defined in %: Standard: 100 (SpaceWidth).

ButtonStyle


Define picture ButtonStyle

#CBP

ButtonStyle-No, <ButtonNameNormal>, <ButtonNameDown> (=Normal), Width(0), Height(0)

The command defines a ButtonStyle: Display two images for the unpressed (<ButtonNameNormal>) and pressed (<ButtonNameDown>) state. The size is determined by Width and Height (= 0 original size).


Define ButtonStyle

#CBD

ButtonStyle-No, DrawStyle-Normal, DrawStyle-Down (=Normal), Width (0), Height (0), Radius(0)

The command defines a ButtonStyle: Display of two DrawStyles for the unpressed (DrawStyleNormal) and pressed (DrawStyleDown) state. The following are further parameters for the Width and Height of the button and the corner rounding (Radius).


Define text

#CBT

ButtonStyle-No, TextStyleNormal, TextStyleDown (=Normal), OffsetX(0), OffsetY(0)

Define the text of the button style. The Offset specifies an additional distance in pixels where the text is positioned on the button.


Define DownEvent

#CBO

ButtonStyle-No, OffsetX(0), OffsetY (=OffsetX), Size(100), Angle(0)

The behaviour of the button when pressed is defined. The button is drawn with the Offset (in pixels). The Size changes proportionally as a percentage. The Angle (in degrees) can also be changed.


Define sound for DownEvent

#CBS

ButtonStyle-No, <SoundString>

A short tone sequence ("Sound string") is played in the DownEvent of the ButtonStyle. If the parameter "Sound string" is empty, the jingle is deleted.


Define disabled ButtonStyle

#CBG

ButtonStyle-No, R (-30), G (=R), B (=R)

The deactivated state of a button is the percentage change in color of the ButtonStyle normal. Each color channel can be addressed individually. The Opacity can also be changed.

ColorRamp


Define ColorRamp

#CCR

ColorRamp-No, Offset1, RGB1, Transparency1, ... Offset10, RGB10, Transparancy10

The command defines a gradient. The base point (Offset) defines the color point in the course in percent, the color is indicated by RGB and Opacity. A maximum of 10 control points can be specified.

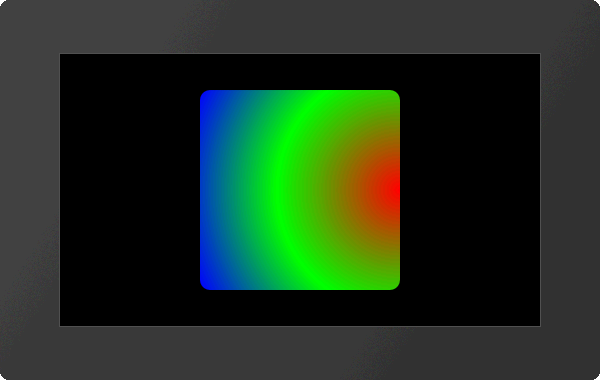

Animate ColorRamp

#CAC

ColorRamp-No, Type (1), Time (100)

The position of the vertices of the gradient are changed. The type specifies the animation type. Time in 1/100 s indicates the duration.

Type

0

Stop animation

1

Cyclic

2

Cyclic backward

3

PingPong

4

PingPong backward

...

#CCR 5,0,$FF0000,100,50,$00FF00,100,100,$0000FF,100

#CFR 15,5,5000,6

#CAC 5,3

...



LinePattern

Define LinePattern

#CDP

LinePattern-No, Offset, Set1, Space1, ..., Set10, Space10

The command creates a line pattern. Set is the length in pixels of the stroke, space is the length without pixels. The Offset determines the start of the pattern in percent. A maximum of 10 control points can be specified.

LinePattern Examples

SolidLine

Standard

DashLine

#CDP 1,0(4lw),(2lw)

DotLine

#CDP 2,0,(lw),(2lw)

DashDotLine

#CDP 3,0(4lw),(2lw),(lw),(2lw)

DashDotDotLine

#CDP 4,0(4lw),(2lw),(lw),(2lw),(lw),(2lw)

*lw = line width

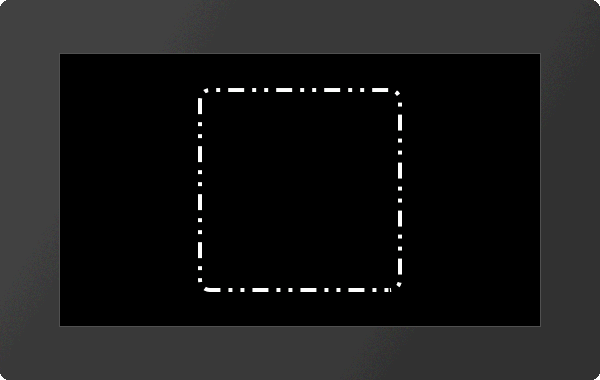

Animate LinePattern

#CAD

LinePattern-No, Type (1), Time (100)

The offset of the line pattern is changed. The type specifies the animation type. Time in 1/100 s indicates the duration.

Type

0

Stop animation

1

Cyclic

2

Cyclic backward

3

PingPong

4

PingPong backward


...

#CDP 4,0,16,8,4,8,4,8

#CAD 4

...
