PCAP Control Unit

PCAP Control Unit
- The upper end -

- move objects in real time
- fade in and out control elements gently
- automatically enlarge parameters
- easy screen creation via Windows tool
- 5", 10.1" and 7" with IPS Displays (1000cd/m²)

5" - 7" - 10.1" Multifunction TFT

Juggle with objects playfully

Juggle with objects playfully

You are looking for a tablet-like display to be integrated into your equipment ?

TFT displays are indispensable in industrial and medical technology as well as in the private sector. Color displays simplify the operation and therefore revalue every device. Optically small and large applications benefit from the use of a color display. What is important, however, is an appealing screen layout - clear and modern design.

This is where the new concept of the new uniTFT family from DISPLAY VISIONS is set. A number of graphically sophisticated objects are available, which can be adapted to the individual requirements by the simplest means. The graphical editor makes it easy to drag and drop elements to create screen pages. The properties of the individual objects can be edited at any time, actions (for example, for touch keys) can be created.

> Flyer

> Datasheet

Objects, Variables, Calculaton

Any object can be placed, moved and deleted at any time. Fonts can be zoomed and rotated without loss. Selected Windows character sets are stored directly in the display. Thanks to automatic ASCII and Unicode switching, all systems are flexibly supported; Chinese characters included.
Elegant effects for fading in and out or flying in are already integrated. Stylesheets can be used to create uniform designs. Images can be embedded as JPEG, PNG or SVG (also transparent), sound can be played in the form of MP3. Together with the integrated and battery-buffered time base, events can be documented together with the help of a time stamp or processes can be controlled completely autonomously.

EA uniTFT - a short introduction video

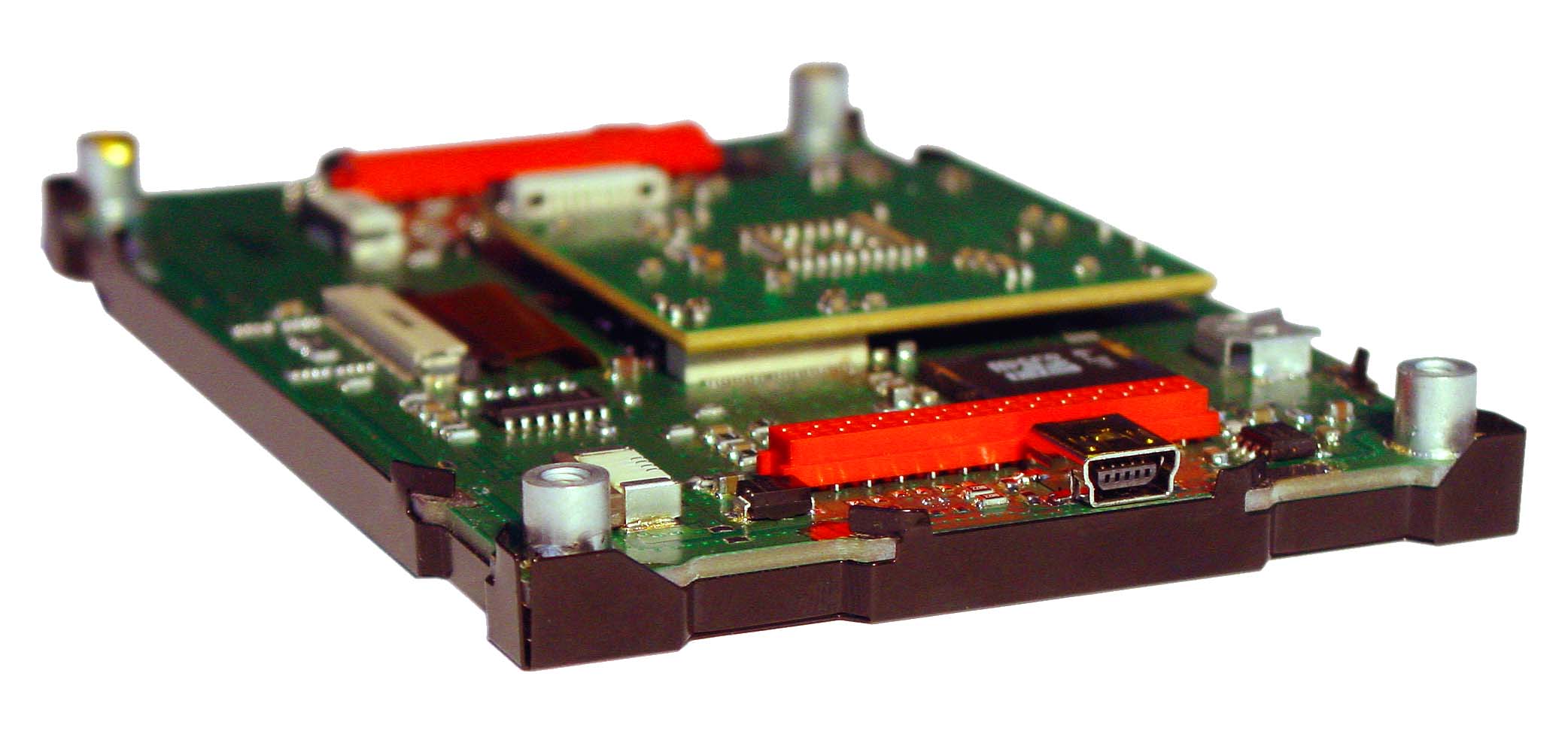

USB and other interfaces

USB and other interfaces

The new EA uniTFT provides various interfaces to the outside world. An USB interface is available for flashing the onboard memory and debugging or also for normal operation. To run the display there are also an SPI, RS-232 and I²C bus interface available. If some external devices or actuators need to be operated, three more interfaces SPI, RS-232 and I²C bus can be used for that; they are declared as master.
4 analogue inputs and one PWM output enable processing of analog signals. 16 digital I/O (expandable up to 128) take over a wide range of control tasks. A video input delivers images, which can be displayed on the screen directly or stored on the integrated micro SD card (up to 32 GB).

The Touchpanel: Resistive or Multitouch-PCAP

Thanks to the high integration, it is easy to create a simple and intuitive user interface. A variety of functions support the use. Individual key sizes and arrangements are possible. Also settings with a slider are quickly realized. The comprehensive functionality makes this display a complete, versatile HMI, which is extremely compact at the same time. The resistive touchpanel can even be operated with a pencil or gloves; The PCAP version performs even behind a 4 mm thick glass or with thin gloves and is multitouch-capable.

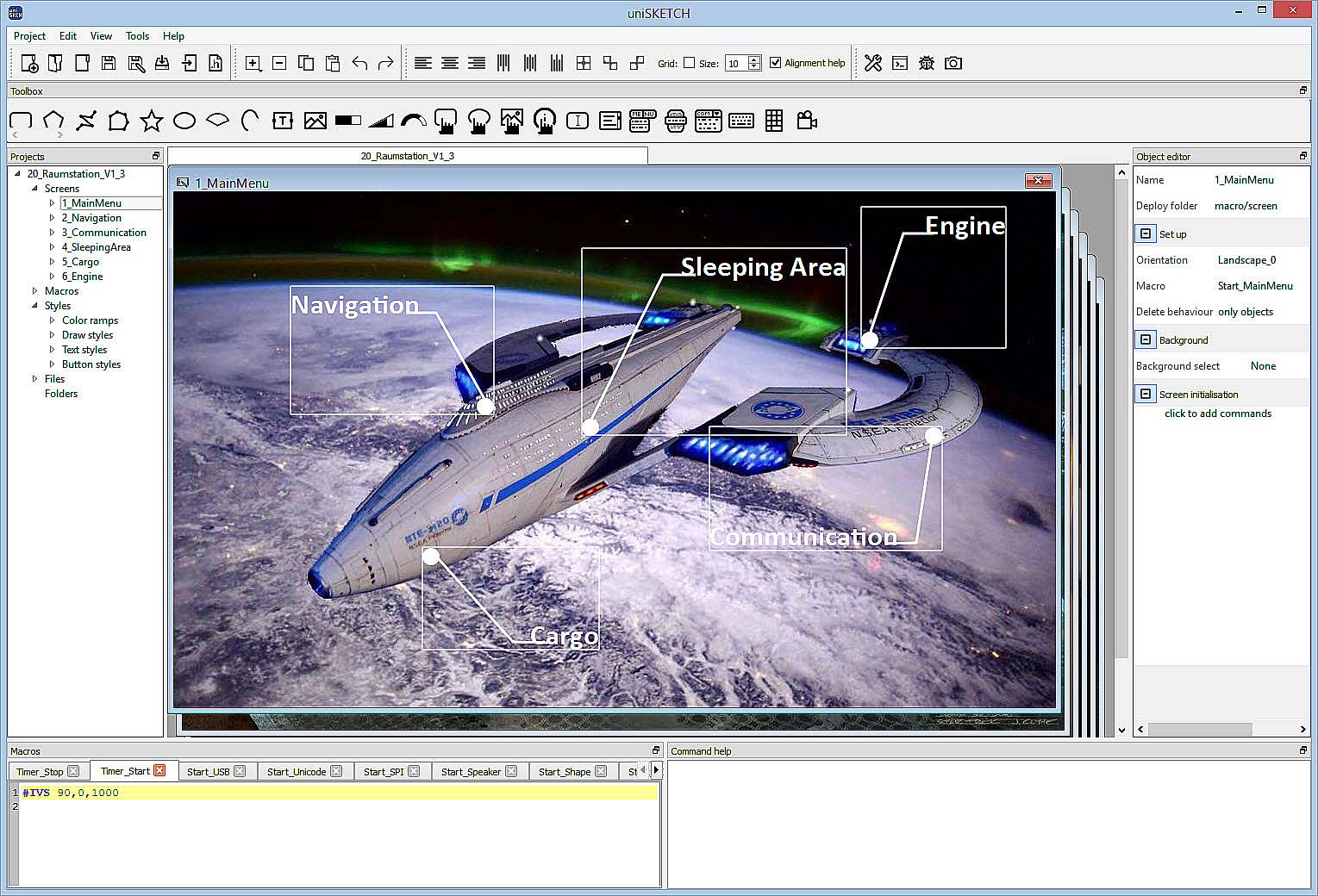

uniSKETCH for Windows

uniSKETCH for Windows

With a graphics tool specially adapted to the possibilities of this display, screen layouts and user interfaces are created easyly. The properties of an object (position, size, angle, transparency) are quickly adapted. Just like the standard stylesheets, The fill color, the border, and the font.
The temperature range of the display is designed for -20 .. + 70 °C. The long-term availability and the high quality requirements testify to the target markets of industry, automotive and medicine.

At a glance

Our displays are available with a screen diagonal of 5", 7" and 10.1" (25.6cm). More sizes will follow. For a quick start, we offer a package that contains a display plus accessories; the order designation is EA QUICKuniTFTxxx. For an easy start we recommend installing the design software uniSKETCH (f.o.c.).



Descripton Ordering code

5" with or w./o. Touchpanel

EA uniTFT050-A

7" with or w./o. Touchpanel

EA uniTFT070-A

10.1" with or w./o. Touchpanel

EA uniTFT101-A
Starter pack

EA QUICKuniTFT

Layoutsoftware and Simulator uniSKETCH V1.2 - WYSIWYG Tool
Accessories

EA KUSB-MINI: Cable with mini USB plug
EA B2B127M-26T: connector for pcb mounting (THT, 2 pcs. are required)
EA KM-126: plug with 250mm IDC cable (2 pcs. are required)

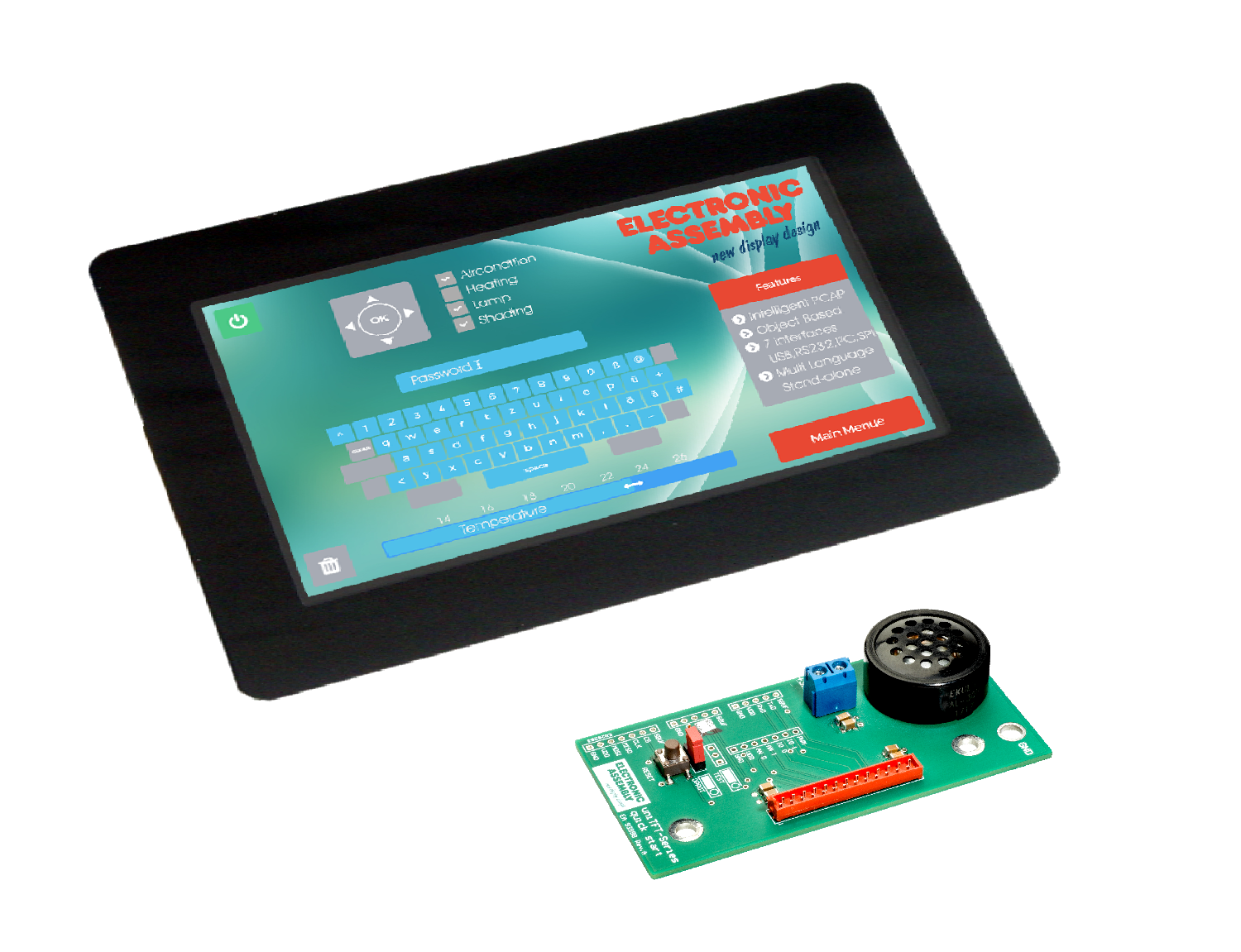

Start immediately with EA QUICKSTART

Start immediately with EA QUICKSTART

Optionally, the display is available in combination with a starter pack. The 5", 7" or 10.1" display with capacitive touchpanel come together with:

- a connection board for 3.3V and screw terminals

- a suitable USB cable for the mini-USB plug on the display

- USB driver and the uniSKETCH layout software for Windows

- lots of examples and documentation

EA Shop  Click here to go directly to our online shop

uniTFT - The Film

EA uniTFT - Change the world with our HMI
