TFT Displays and Monochrome LCD

TFT Displays and Monochrome LCD

Small graphic displays 1.7" ~ 7".

Immediate availability.

Long term availability.

Industry approved.

RGB interface, 8-Bit µC, 16-Bit µC, SPI.



TFT & Standard Graphic

Replacing a 128x64 by TFT color display?

Replacing a 128x64 by TFT color display?

You like to replace your 128x64 graphics display (monochrome) with a color display? We have the solution and show you how to do.

Our TFT color displays with 2.0" / 2.8" / 3.5" / 4.3" are the further development of the widespread black&white graphic displays: simply connected via SPI interface and therefore suitable for all μC. Alternatively, these small TFTs can also be connected via the classic RGB interface or an 8- or 16-bit data bus.

With its 2" diagonal, the EA TFT020-23AI is indeed a tiny, but the fine resolution of 240x320 pixels conjures up brilliant images at crispy 1000cd/m². The IPS technology provides a gigantic all-round viewing angle with sunlight readability:

Sunlight readable TFT (IPS) display for industrial and medical equipment

IPS Displays with and w./o. Touch (PCAP)

Excellent readable industrial displays for handhelds and small desktop devices.

Datasheet Size Dimension Webshop
EA TFT020-23AI 2.0" 36x52mm EA Shop
EA TFT028-23AI 2.8" 48x68mm EA Shop
EA TFT035-34AI 3.5" 55x83mm Samples available
EA TFT043-42AI (under development) 4.3" 105x67mm
Same Connector for all !

Same Connector for all !

Who is not already desperate at the different pin assignments and connector types with different TFT displays? This is now the end. All TFT displays 3.5~7" from our company have an identical connection with 40 pins. Also the pin assignment itself is almost identical. A matching ZIFF connector is available as an accessory.

The displays have been developed especially for industrial applications and are available for long term. The lifetime is 50,000 hours and the operating temperature range is from -20°C to +70°C. For the backlighting, bright high-quality LEDs are installed.

Normally the displays are available ex stock!

TFT Displays
with and w./o. Touch Panel

Part Number

Size

Dimensions

Resolution

Touchpanel

Shop

Data Sheet

EA TFT035-32ANN

3.5"

76.9 x 63.9 x 3.26

320x240

-

EA Shop

Link

EA TFT035-32ATS

PCAP

Link

EA TFT035-32ATP

Resistive

Link

EA TFT043-42ANN

4.3"

105.5 x 67.2 x 3.0

480x272

- EA Shop

Link

EA TFT043-42ATS

PCAP

Link

EA TFT043-42ATP

Resistive

Link

EA TFT050-84ANN

5"

120.7 × 75.8 ×2.8

800x480

- EA Shop Link
EA TFT050-84ATS PCAP Link
EA TFT050-84ATP Resistive Link
EA TFT052-41ANN

5.2"

140.4 x 49.9 x 3.0

480x128

- EA Shop Link
EA TFT052-41ATS

PCAP

Link
EA TFT052-41ATP

Resistive


EA TFT057-32ANN

5.7"

141.1 x 101.6 x 6.5

320x240

- EA Shop

Link

EA TFT057-32ATS

PCAP

Link

EA TFT057-32ATP

Resistive

Link

EA TFT070-84ANN

7"

165.0 x 100 x 5.8

800x480

- EA Shop

Link

EA TFT070-84ATS

PCAP

Link

EA TFT070-84ATP

Resistive

Link

Graphic Displays

Graphic Displays

LCD graphics displays for the 8-bit data bus in a variety of sizes and resolutions up to 5.7". Besides the standard displays we also do provide some with Built-in IntelligenceControl Units with Touch Panel and serial interface RS-232, SPI or I²C bus. Many displays already have an integrated controller. This enables individual pixels to be set and deleted. In addition, the T6963C controller permits the use of an integrated 6x8 character set. The various displays are available both without illumination and with a variety of types of illumination:

  • LED illumination: yellow/green in color, problem-free 5V= supply voltage, extremely long life with 100,000 h
  • LED illumination white/blue: 5V= supply voltage, half-brightness 10,000~50,000h long life, blue design - EL foil: blue, requires an EL inverter, energy-saving, limited life
  • CFL tube: white, CFL inverter required, very bright, only possible with larger displays.

Accessiories for graphics displays include appropriate High-Level-Graphics-Controllers, character sets, bezels and illumination inverters.

Additional information

Additional information

You will find specific information on each display in the table below under "Data sheet". Detailed information on the programming of the different controllers is provided here: Data sheet for the integrated Graphic Controller.

New are the TFT Color-Displays with 3.5", 4.3", 5.7" and 7". They do provide a digital interface with 3x8 = 24 bit (16 million colors). The backlight is realised with high-efficiency LED's.

New and very compact are also the EA DOG displays: super flat, 3.3V single supply, SPI interface and min. 16 different color combinations.

STANDARD MODULES

Item
description
Resolution Dimensions Bezel Controller Ill. Touch Vee Data
sheet
Pixels W x H x D
EA P098-5NLED 98x32 52x44x13

SED 1520 onboard

LED



-1.5V P098-5
EA DOGS102-6New 102x64 39x40x5   integr. UC1701 LED

yes

built in DOGS102-6
EA T120-5 120x32 68x39x8 017-8U PT6520
onboard
LED

yes

-1V T120-5
EA DIP122-5NLED 122x32 68x27x11   LED



-1V DIP122
EA P122-5NLED 122x32 84x 44x14 0090-122 LED



-2V P122-5N
EA DOGM132-5New 132x32 55x31x2   integr. ST7565 LED   built in DOGM132-5
EA DOGM128-6 128x64 55x46x2   LED

yes

built in DOGM128-6
EA W127W-6X9HEW 128x64 56x43x3   EL foil   built in W127W-6X
EA DOGL128-6 128x64 68x51x3   LED

yes

built in DOGL128-6
EA W128-6N2LED 128x64 93x70x14 0099-KE integr.
KS 0107/8
LED

yes

built in W128-6N2
EA DIP128-6N5LW 128x64 75x46x11   LED

yes

built in DIP128-6
EA DIP128J-6N5LW 128x64 75x46x11   LED

yes

built in
EA P128-6N3LED 128x64 84x60x11   LED



built in P128-6N3
EA P128-6N7LED 128x64 75x53x9 017-17U LED



-5V P128-6N7
EA J128-6N6LED 128x64 78x70x10   LED



-10V J128-6
EA DOGXL160-7 160x104 78x64x6   integr. UC1610 LED

yes

built in DOGXL160-7
EA C160-6NLED 160x80 93x70x14 0099-KE LC7981
onboard
LED

yes

built in C160-6
EA W160B-6NLW 160x80 93x70x14 0099-KE LED

yes

built in W160-6
EA W160-7KHLW 160x128 140x102x19 017-18U T 6963C
onboard
LED

yes

built in W160-7
EA W160-7KHC 160x128 140x102x19 017-18U CFL

yes

built in
EA DIP180B-5NLW 180x32 102x27x11   SED 1520 LED yes -3V DIP180
EA DOGXL240-7New 240x128 94x64x6   integr. UC1611 LED yes built in DOGXL240-7
EA eDIP240B-7 240x128 113x70x11 0FP241-7 Intelligent ! LED

yes

built in eDIP240-7
EA W240-6K2HLW 240x64 180x65x15 017-10U T 6963C
onboard
LED

yes

built in W240-6
EA DIP240B-7KLW 240x128 113x70x11   LED

yes

built in DIP240-7
EA W240-7K2C 240x128 170x105x14   CFL



built in W240-7K2
EA W240-7KHLEDB 240x128 144x104x14 0FP240-7 LED

yes

built in W240-7
EA W240-7KHC 240x128 152x104x14 0FP240-7 CFL

yes

built in
EA eDIP320B-8 320x240 138x105x10 0FP321-8 Intelligent ! LED yes

built in

eDIP320-8
EA W320W-8K3LW 320x240 156x120x21 0FP320-8 S1D13700 onboard LED

yes

built in W320-8K3
Intelligent Displays with RS-232, SPI and I²C

Intelligent Displays with RS-232, SPI and I²C

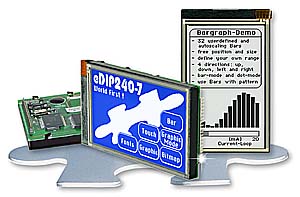

Built-in character sets, graphic functions, adjustable backlight, full touch panel support; these are world-wide unique features. No more working with pixel, but using more than 112 powerful graphic functions. With integrated FLASH for more fonts, pictures and macros. Last but not least there is a cost-free simulator software for the EA eDIP240-7 and a starter kit with USB. Read more about this fine displays on our page eDIP.
