Tablet feeling for your application

EA Unitfts series

Features

  • 1.5" 240x240 / 2.0" 320x240 / 2.8" 320x240 / 3.5" 480x320 / 4.3" 480x272
  • AACS-Display (all angle color stability, optimized backlight and IPS-Panel with widest viewing angle)
  • Superbright LED backlight over 800 cd/m²
  • Object-oriented screen layout
  • Change object during run-time: size, shape, color, content
  • Animate and move objects
  • Alpha-blending
  • Fonts: ASCII and Unicode
  • Single supply 3.3 V or directly through USB
  • Serial Interfaces: USB, RS232, SPI, I²C
  • 8 digital, freely definable I/Os built in, expandable up to 136
  • 4 analog inputs
  • Time (RTC), battery-buffered
  • Flash-memory as storage for pictures, fonts, menus and log-files
  • Internal functions for calculation as well as programmability
  • Tone feedback build-in
  • Top. -20..+70°C / Tstor. -30..+80°C

ordering code

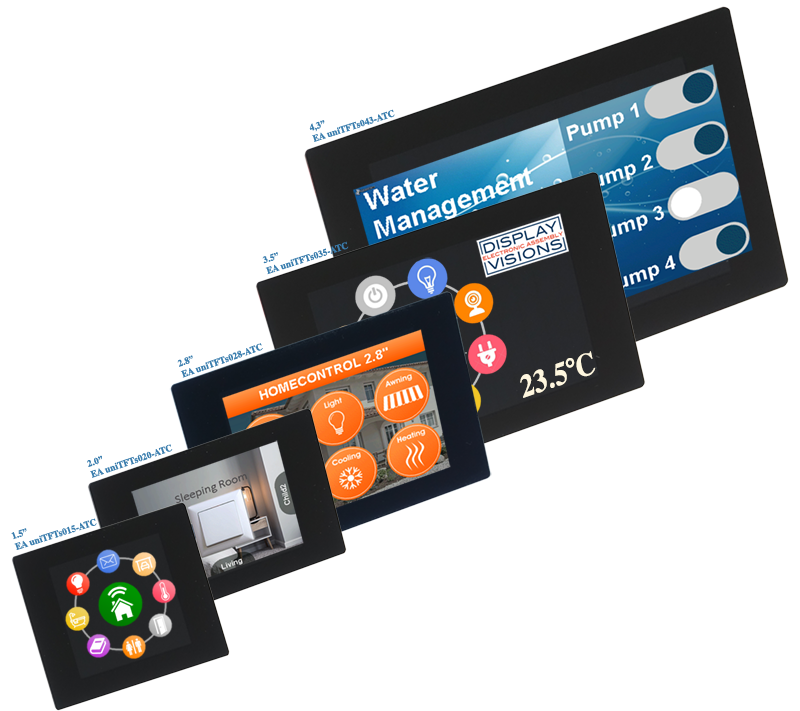

Displays


1.5" TFT 240 x 240 pixels, with PCAP and white LED backlight (external dimensions: 44 x 46 mm)

EA uniTFTs015-ATC

2.0" TFT 320 x 240 pixels, with PCAP and white LED backlight (external dimensions: 65 x 43 mm)

EA uniTFTs020-ATC

2.8" TFT 320 x 240 pixels, with PCAP and white LED backlight (external dimensions: 84 x 58 mm)

EA uniTFTs028-ATC

3.5" TFT 480 x 320 pixels, with PCAP and white LED backlight (external dimensions: 100 x 65 mm)

EA uniTFTs035-ATC

4.3" TFT 480 x 272 pixels, with PCAP and white LED backlight (external dimensions: 114 x 84 mm)

EA uniTFTs043-ATC

Accessories


ZIF-connector 40 positions 0.5 mm pitch connector for FPC-cable

EA WF050-40S

FPC-cable 40 positions 0.5 mm pitch 102 mm long

EA KF050-40

USB-Kabel Typ A -> Mini USB around 1 m

EA KUSB-MINI

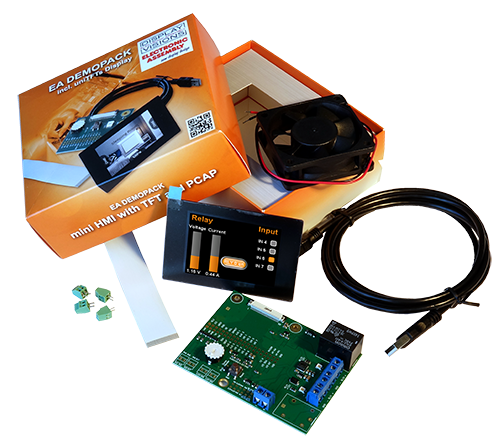

Demopack




Various starter sets with 2.8" IPS display, PCAP and test board. For more information, please refer to the data sheet.

Test board for all interfaces with additional level converters for

SPI & I²C 3.3V and 5V, RS-232 ±12V, RS-485, USB

Supply 5~30V

EA DEMOPACK-CONNI

Relay with current measurement and digital inputs up to 30V

Supply 5~30V

EA DEMOPACK-RELAY

Test board with RGB LED (via SPI) and analog voltage measurement

EA DEMOPACK-RGBANA
