Reliability conditions
Reliability conditions
Sampling Plan
Unless there is other agreement, the sampling plan for incoming inspection shall
follow MIL-STD-105E.
Lot size: Quantity per shipment as one lot (different model as different lot).
Sampling type: Normal inspection, single sampling.
Sampling level: Level II.
AQL: Acceptable Quality Level
Major defect: AQL=0.65
Minor defect: AQL=1.0
Condition test
No change on display and in operation under the following test condition:
Condition: Unless otherwise specified, tests will be conducted under the following condition.
Temperature: 20±5oC.
Humidity: 65±5 RH%.
Tests will be not conducted under functioning state.
No. |
Parameter |
Condition |
Notes |
1 |
High Temperature Operating |
70oC±2oC, 240hrs (Operation state). |
|
2 |
Low Temperature Operating |
-20oC±2oC, 240hrs (Operation state). |
1 |
3 |
High Temperature Storage |
80oC±2oC, 240hrs. |
2 |
4 |
Low Temperature Storage |
-30oC±2oC, 240hrs. |
1,2 |
5 |
High Temperature and High Humidity Operation Test |
60oC±2oC, 90%, 240hrs. |
1,2 |
6 |
Vibration Test |
Total fixed amplitude: 1.5mm. Vibration Frequency: 10~55Hz. One cycle 60 seconds to 3 direction of X, Y, Z each 15 minutes. |
3 |
7 |
Drop Test |

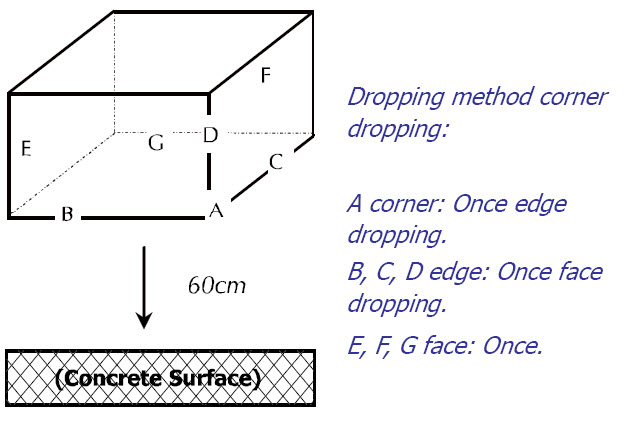

To be measured after dropping from 60cm high on the concrete surface in packing state.
|
Notes:
1. No dew condensation to be observed.
2. The function test shall be conducted after 4 hours storage at the normal temperature and humidity after removed from the test chamber.
3. Vibration test will be conducted to the product itself without putting I in a container.
Panel Inspection Condition
Environment: Room Temperature: 20±5°C.
Humidity: 65±5% RH.
Illumination: 300 ~ 700 Lux.

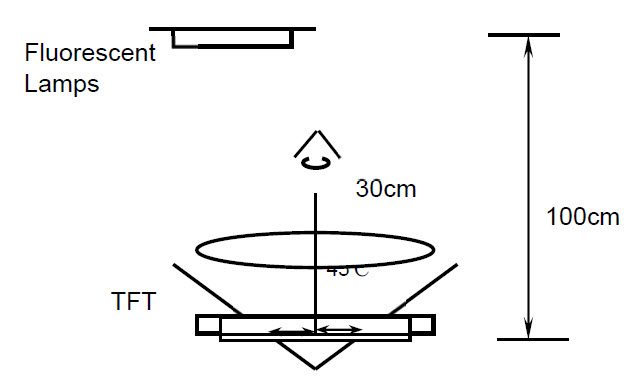

Inspection Distance: 30±5 cm
Inspection Angle: max. 40°; the vision of inspector should be perpendicular to the surface of the module.
Display Quality
Function Related:
The function defects of line defect, abnormal display, and no display are
considered Major defects.
Bright/Dark Dots:
Defect Type |
Specification |
Major |
Minor |
Bright Dots |
N<= 2 |
• |
|
Dark Dots |
N<= 3 |
• |
|
Total Bright and Dark Dots |
N<= 4 |
• |
Notes:

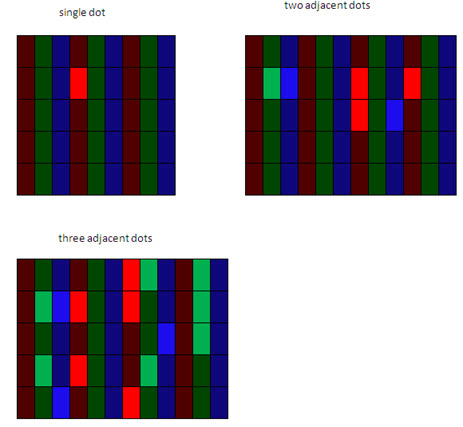

1. The definition of dot: The size of a defective dot over 1/2 of whole dot is regarded
as one defective dot.
2. Bright dot: Dots appear bright and unchanged in size in which LCD panel is
displaying under black pattern.
3. Dark dot: Dots appear dark and unchanged in size in which LCD panel is
displaying under pure red, green, blue pattern.
