Connection
The PLCM provides lots of input and output connectors. It is quick and easy to connect external sensors and load. Plug in the cable tool-free into push-in connection technology at a 45° angle. The green terminal blocks are designed to cover wires from AWG 12 to AWG 28, which is 0.09 to 4 mm². The white terminal blocks provide a tool-free connection for wires from AWG 18 to AWG 24, which is 0.8 to 0.2 mm²
The wire should be stripped for 10 mm length. Both can be used, riged conductors and cable litz. To release simply insert a screw driver into the slot above the cable entry and pull out the cable. Also to insert a cable litz, a screw driver need to be used meanwhile.

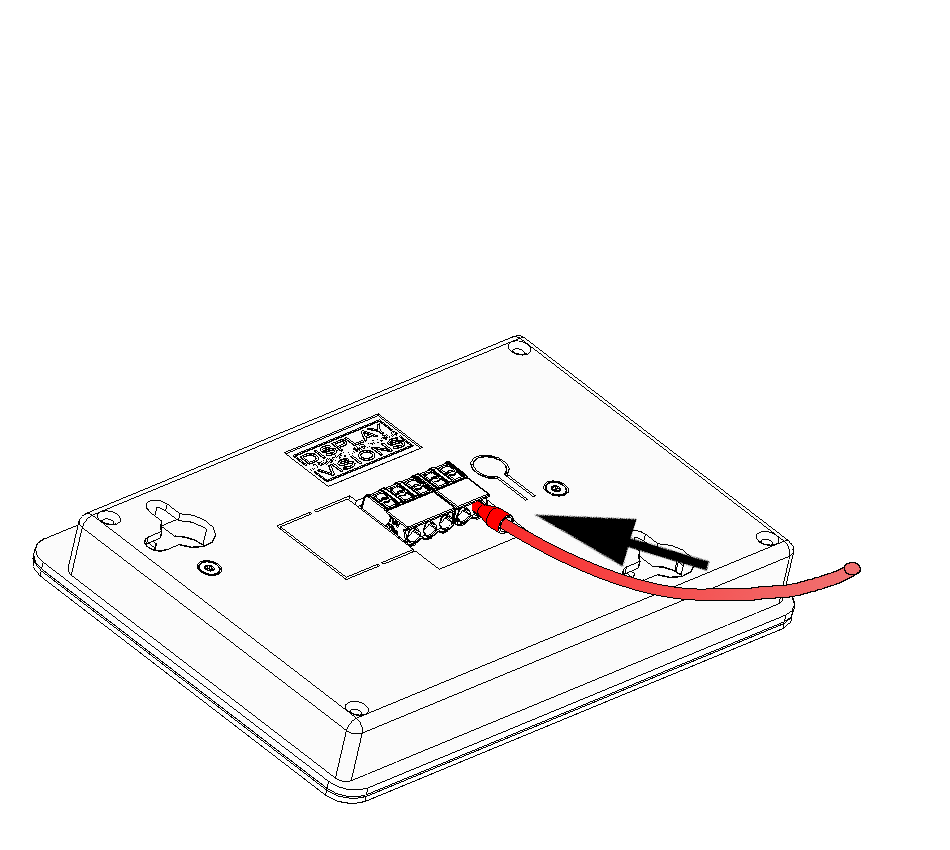

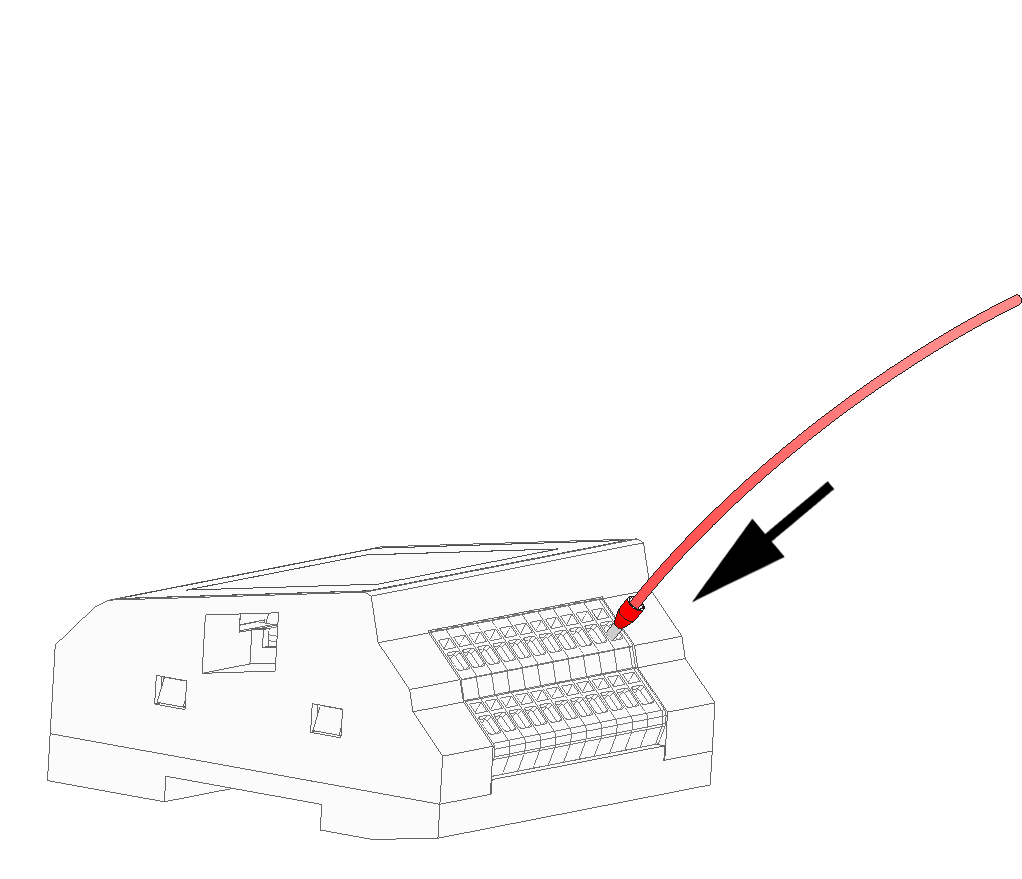

Riged cable |

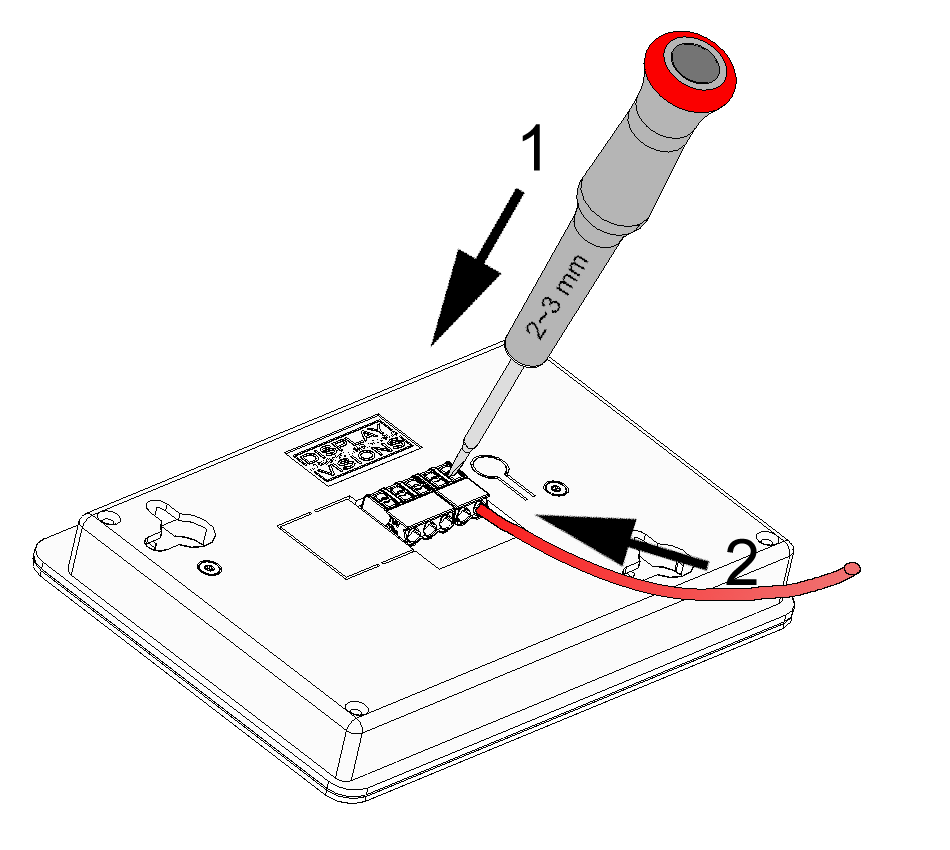

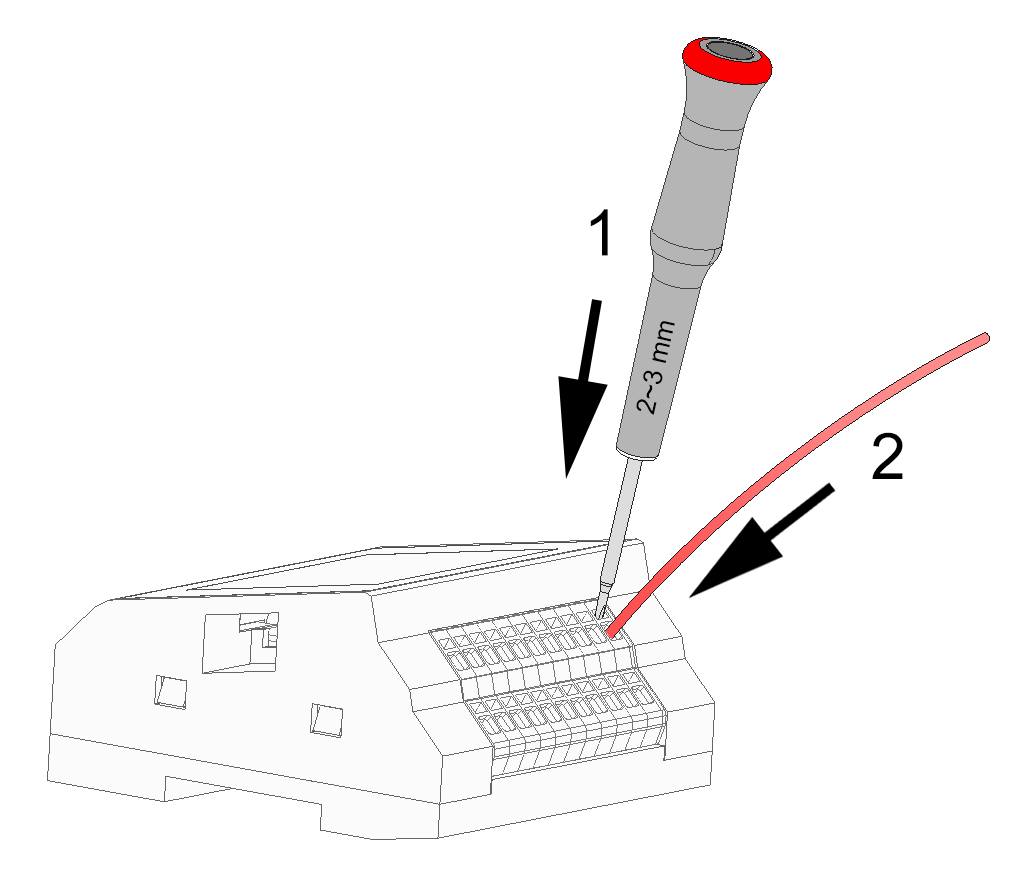

Cable litz |
||
|
|
||

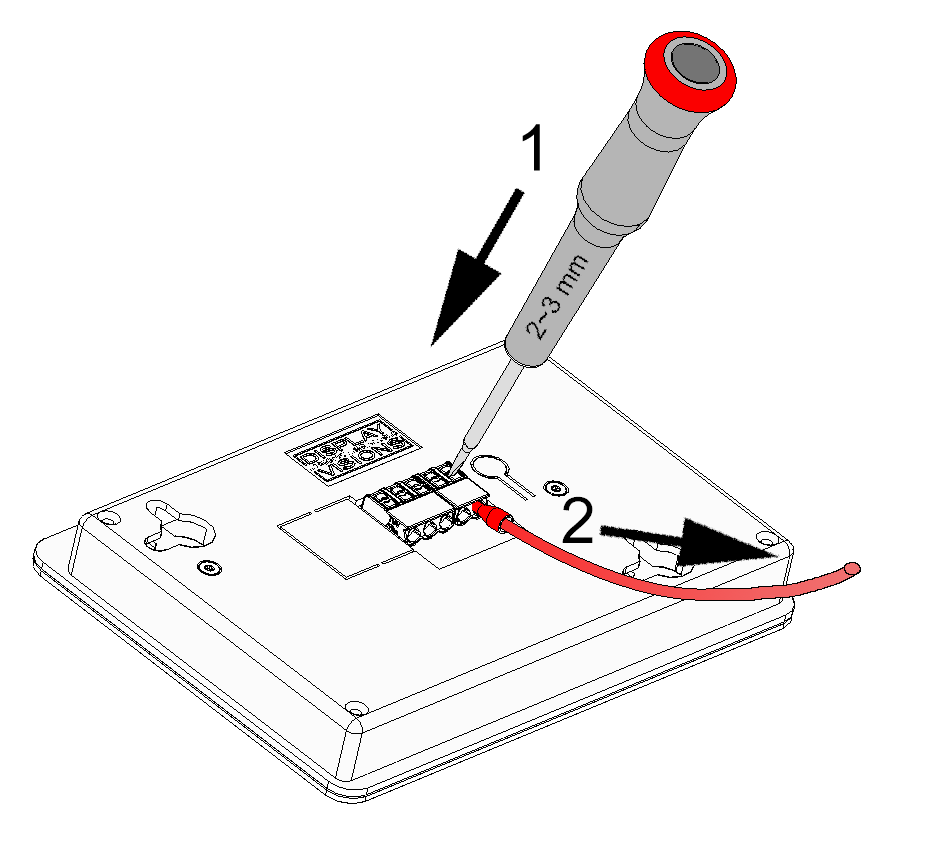

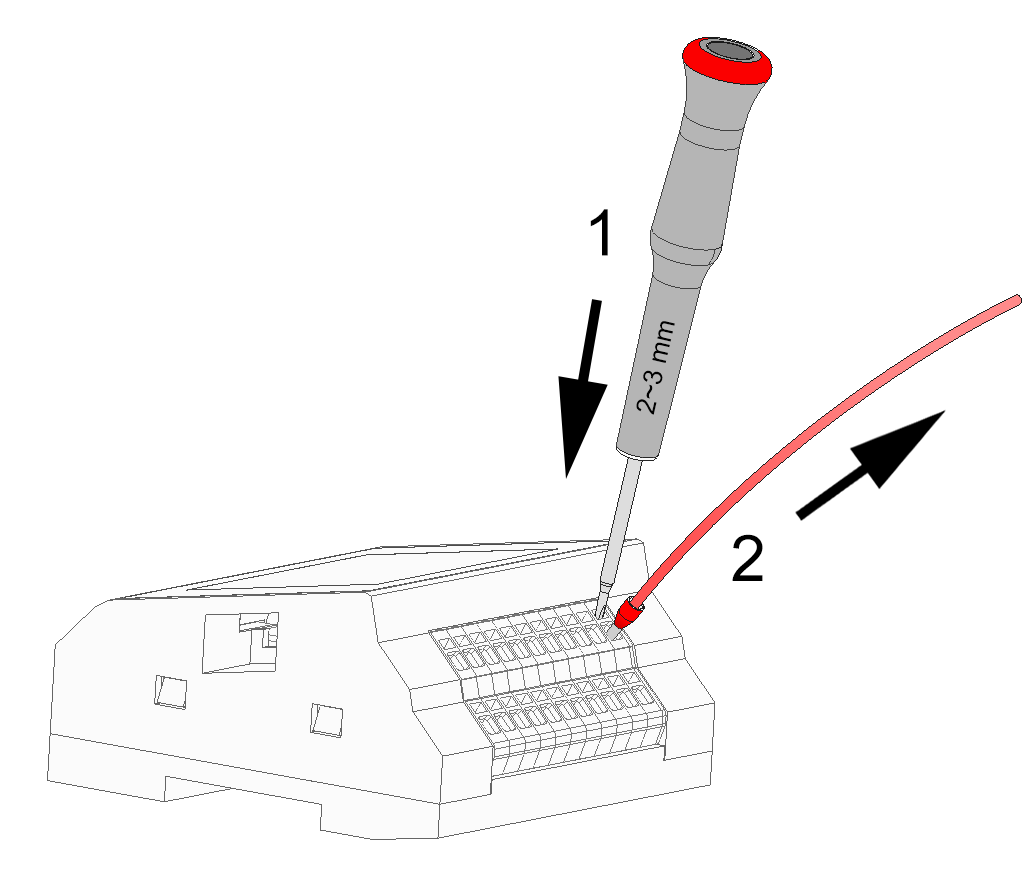

Release |
|||
|
|
